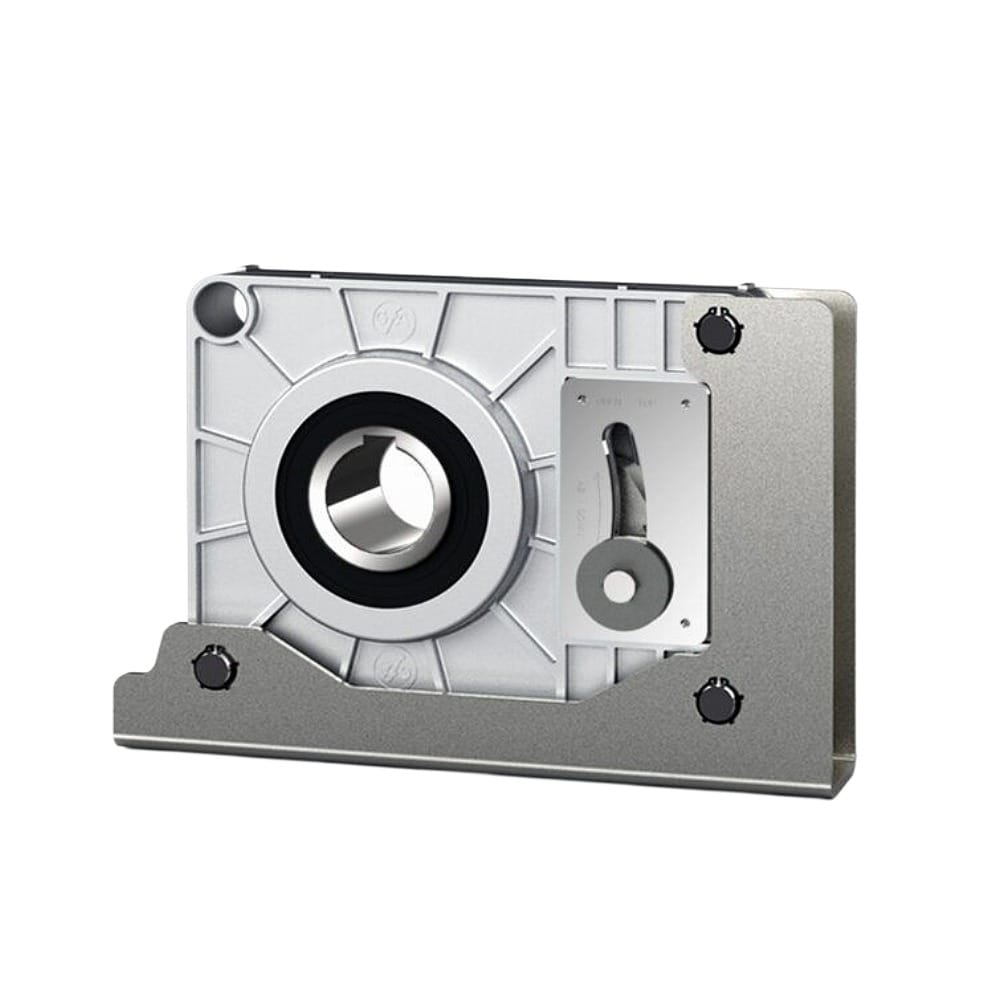

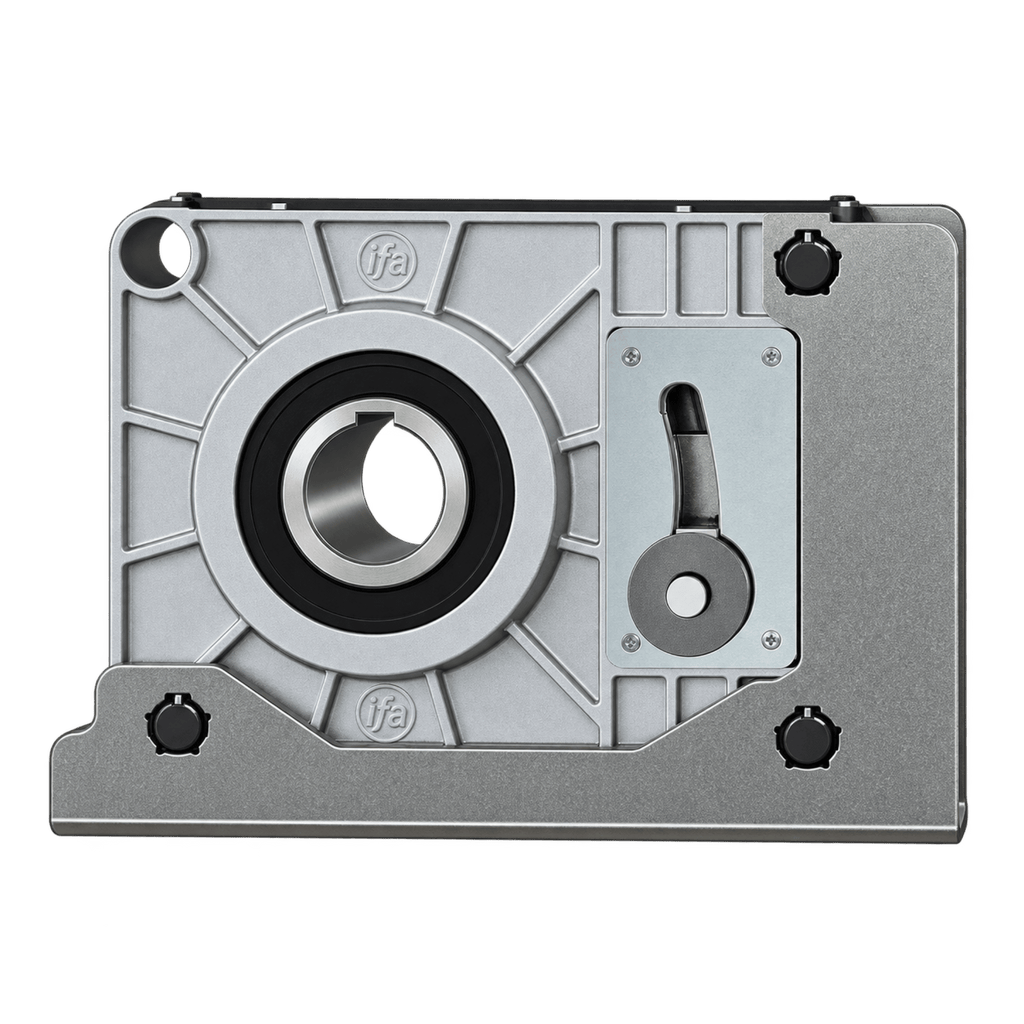

Marantec Safety Catch Device FG 220-65

ITEM IS ONLY SOLD TO TRADERS!

193348

• Anti-fall device/run-down protection
• Corrosion protection

• Compact design with same outer dimensions for all sizes
• Integrated damping
• Short drop distance
• Safety switch for locking the drive
• Maintenance-free and wear-free

• Test certificate number: 240 43819
• Bearing type: pendulum-mounted

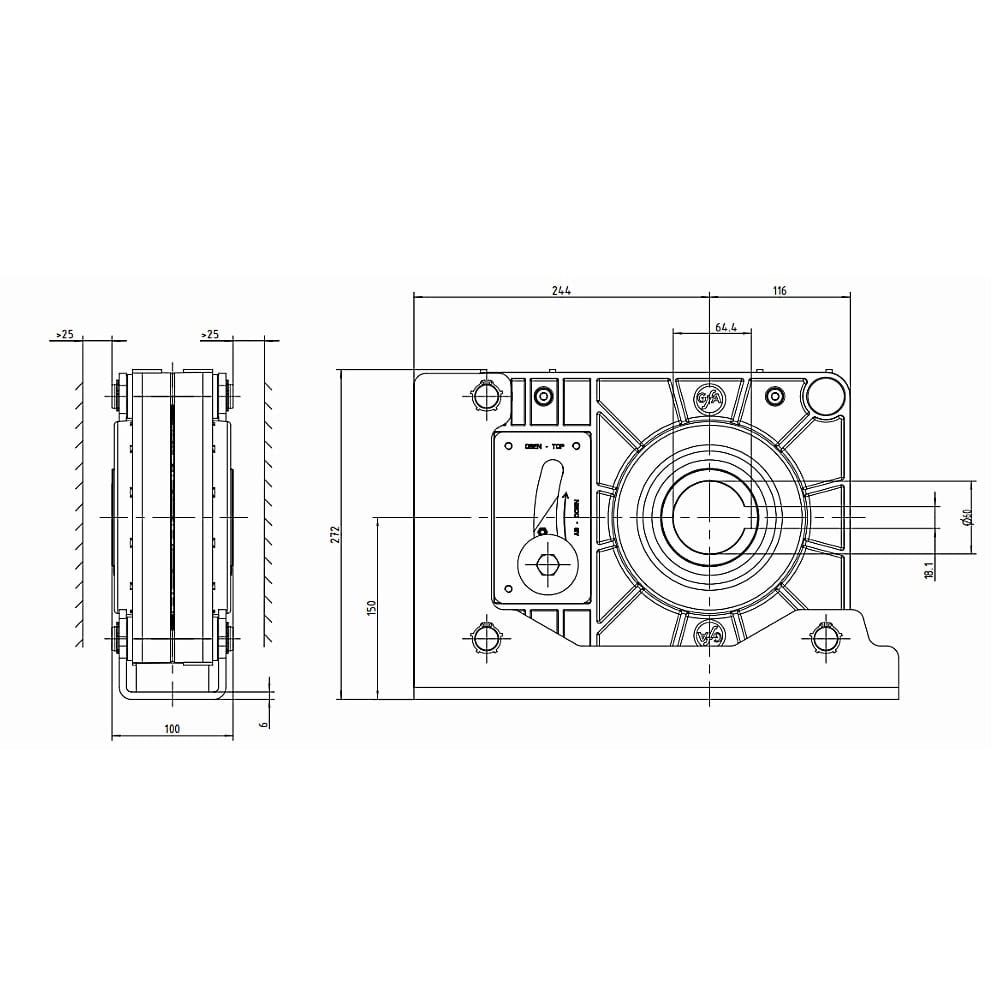

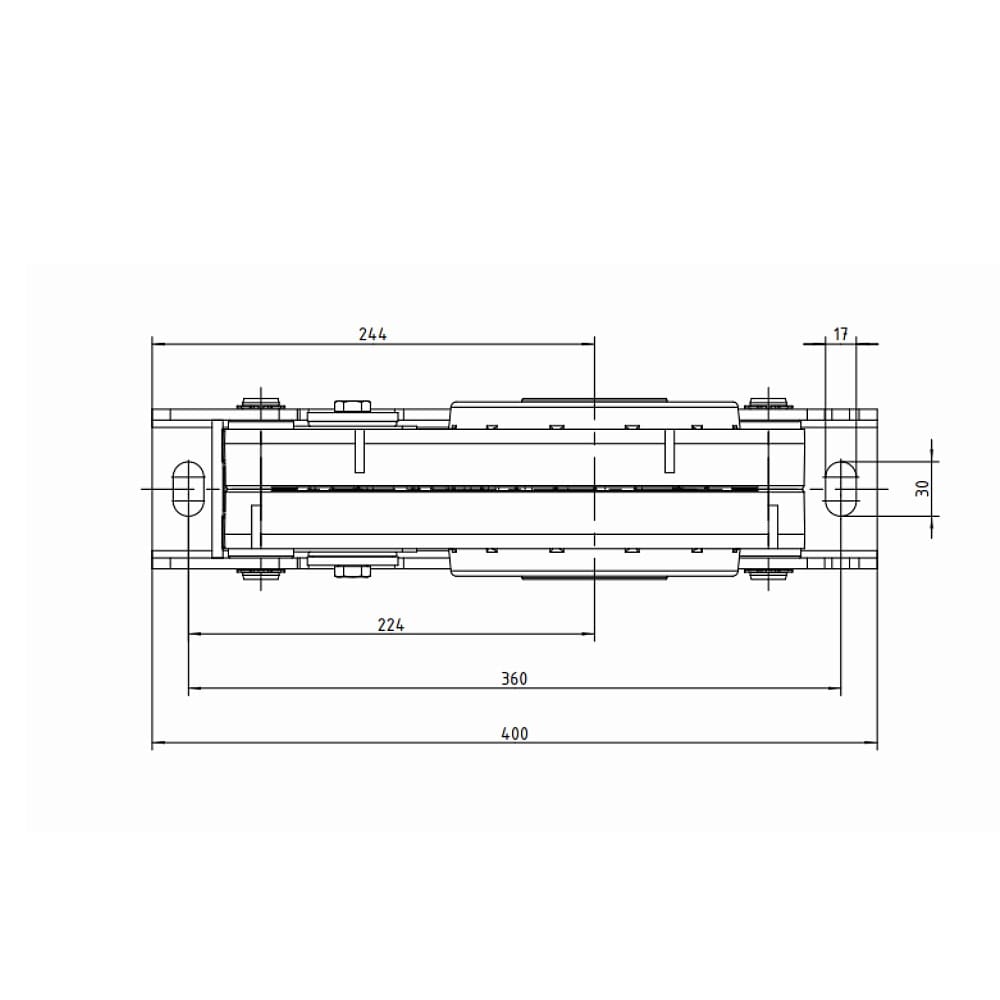

• Dimensions see drawing
• Weight: 16.5 kg
• Protection class: IP65
• Catching torque of the safety catch device (max.) [Nm]: 6,691
• Permissible torque [Nm]: 2,200
• Operating speed UP (max.) [1/min]: 27
• Operating speed DOWN (max.) [1/min]: 15
• Shaft mount [mm]: 65
• Country of origin: Germany

ATTENTION: The torque of the run-down protection and the motor are subject to different values. The choice of run-down protection depends on the shaft and the weight of the curtain and not on the motor's torque. Run-down protections are required in the relevant guidelines for roller shutters weighing 20 kg or more in front of doors or passages.

Scope of delivery: 1 piece with cable
