Timmer anti-rollback device TA 0-RD/XS (yellow) 95 Nm torque, catching torque 545 Nm
16x16 square
154,95€
Skip to product information
Low stock
Timmer anti-rollback device TA 0-RD/XS (yellow) 95 Nm torque, catching torque 545 Nm
Hersteller: Timmer
FG Artikel Nummer:
530001-16
154,95€
Taxes included.
Shipping calculated at checkout.
Express shipping available
Timmer Anti-Rollback Device TA 0-RD/XS (yellow) 95 Nm torque, 545 Nm catching torque
ITEM IS SOLD TO BUSINESS CUSTOMERS ONLY!
8000917 / 8000905 / 8000903

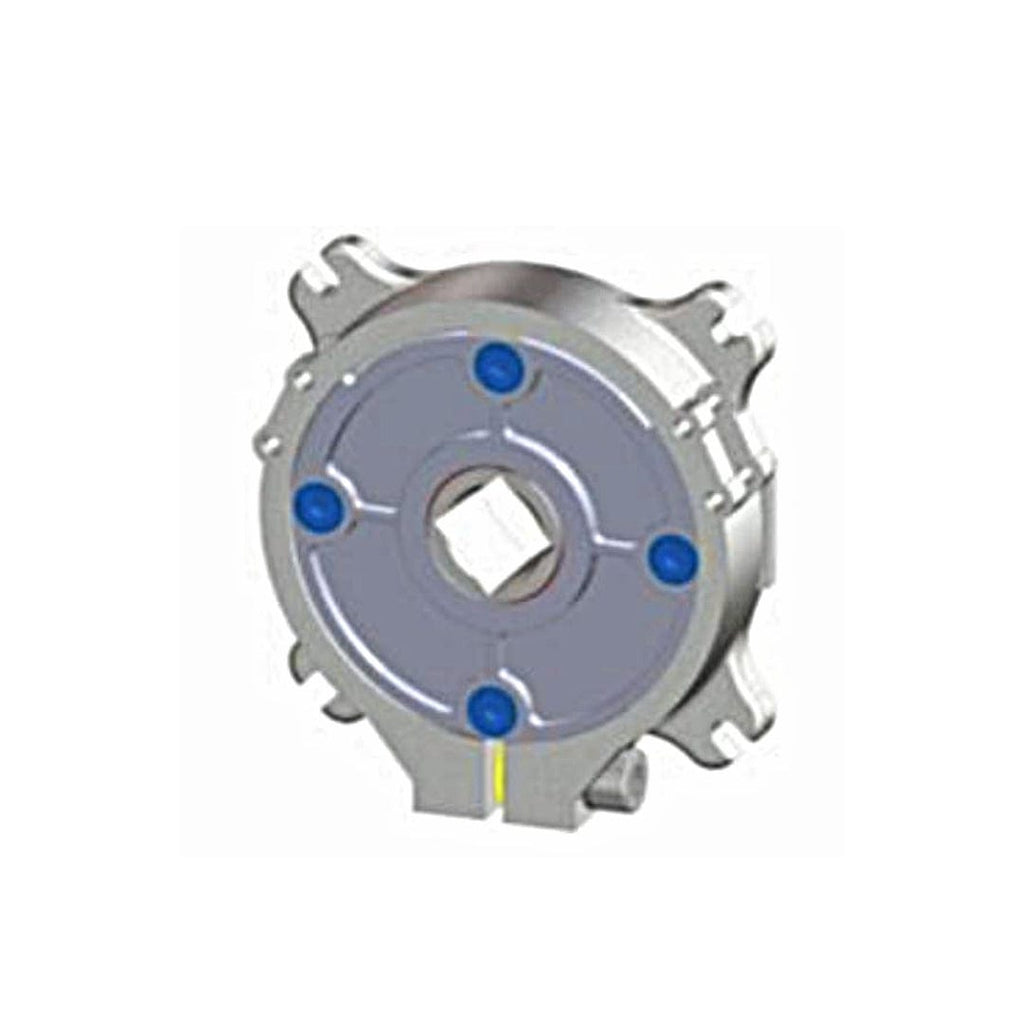

- Timmer Anti-Rollback Device
- Suitable for left and right installation due to double catching chamber
- Damping ensures gentle catching of the curtain and prevents damage

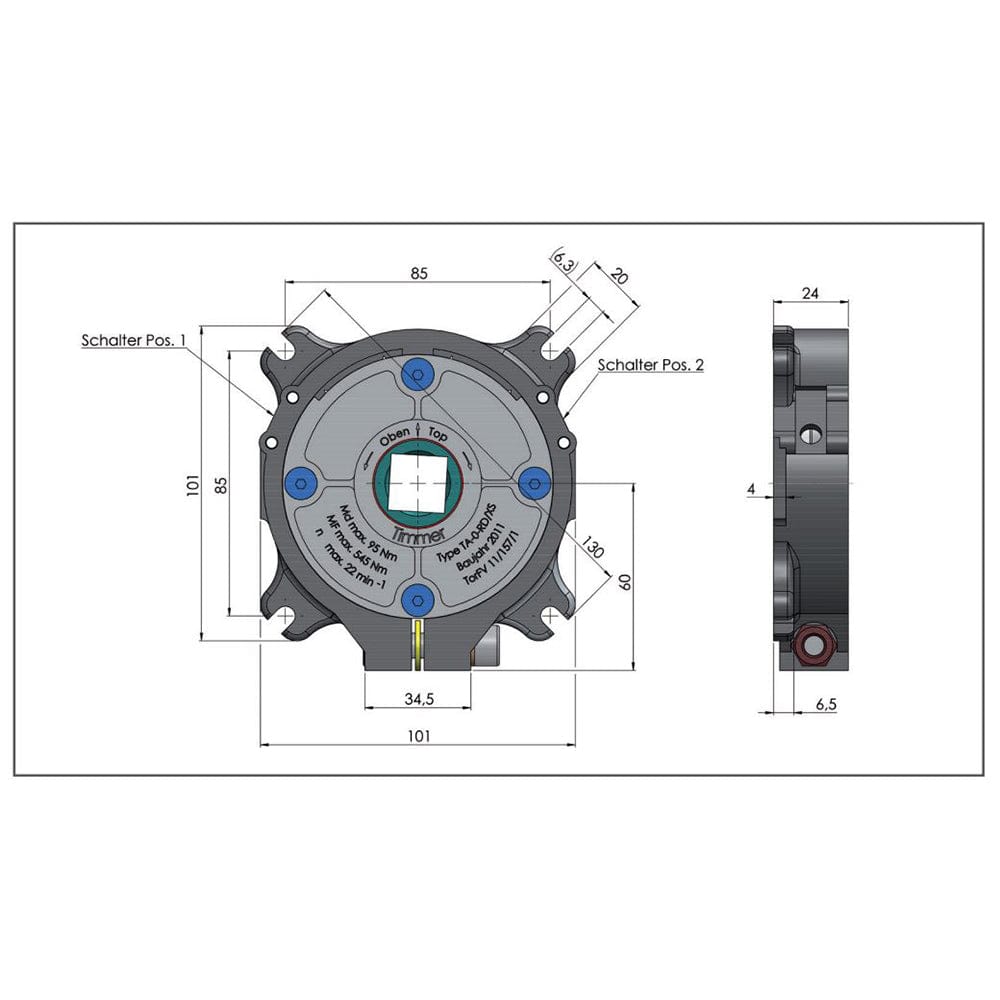

- Extremely narrow mounting width of only 24 mm
- with cable
- max. torque: 95 Nm
- max. catching torque: 545 Nm
- Winding radius max.: 130 Nm
- Square bore: selectable
- Operating speed: max. 22 rpm
- Conformity no.: TorFV 11/157/1
- Material: Steel
ATTENTION: The torque of the anti-rollback device and the motor are subject to different values. The choice of the anti-rollback device depends on the shaft and the weight of the curtain, not on the motor's torque. Anti-rollback devices are required by relevant guidelines for roller shutters weighing 20 kg or more in front of doors or passages.
Scope of delivery: 1 piece with cable
