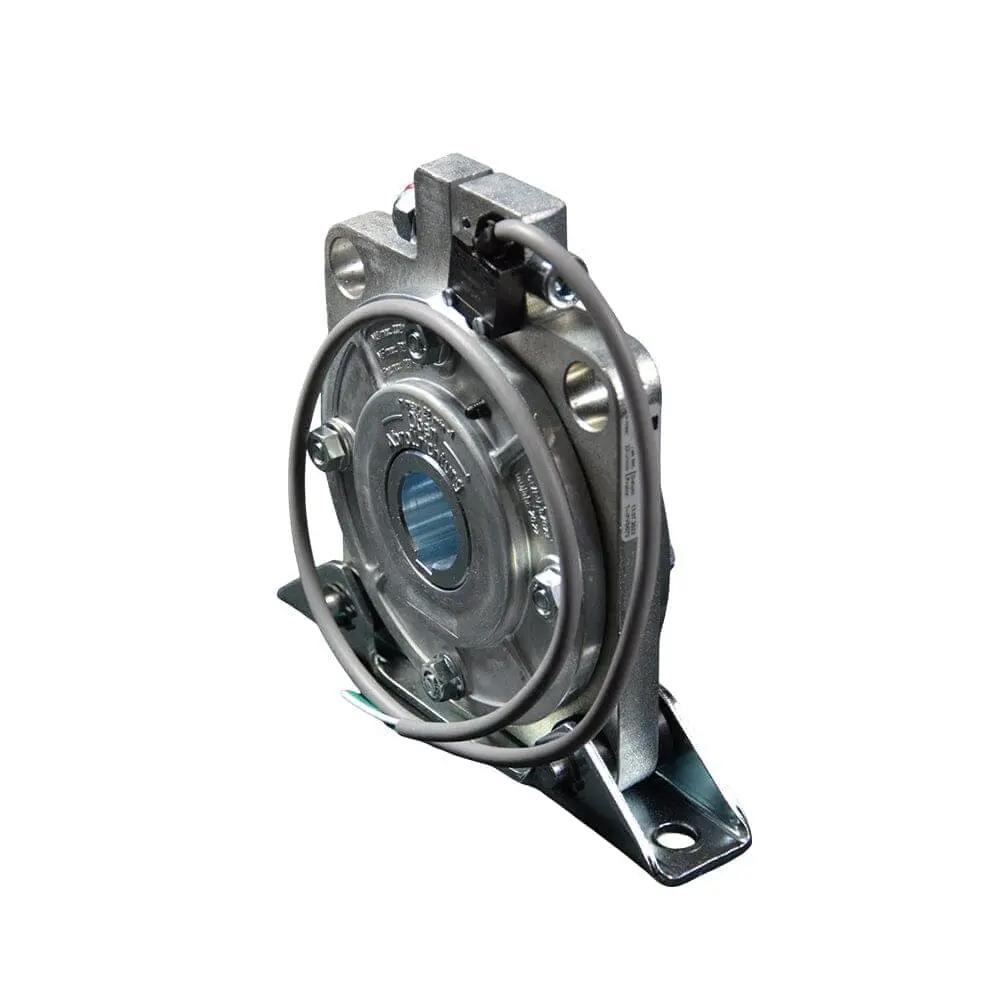

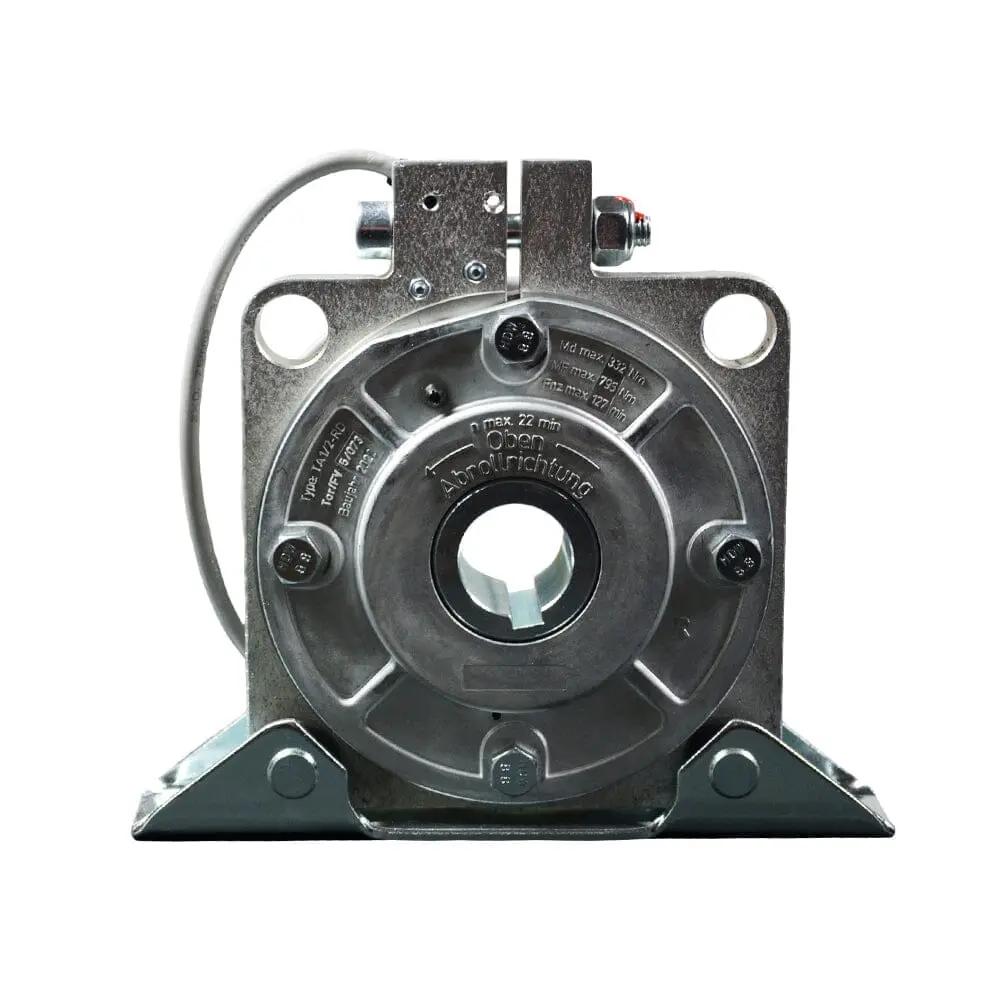

SIMU Anti-fall back device 332Nm with cable 2007931 TA 1/2-RD (332Nm)

ITEM ONLY SOLD TO BUSINESSES!

2007931

The anti-fall back device detects a sudden overspeed in the event of a suspension component failure and blocks the curtain from falling, stopping the frame. A comprehensive range suitable for most installation elements (brackets, plates, angle brackets, roller capsules, shafts for roller capsules). ANTI-KICKBACK SYSTEM: A patented built-in "ANTI-KICKBACK" system immediately secures the closing of the gate and prevents the curtain from falling abruptly.

• for roller shutters and gates
• Usable on the left and right
• Anti-fall back device: 332Nm
• Blocking: 796Nm
• Operating speed: 22min-1

• Mount for 30mm round bar
• Cable length opener contact: 1m

• Certifications: CE

• Manufacturer number 2007931


ATTENTION: The torque of the anti-fall back device and the motor have different values. The choice of the anti-fall back device depends on the shaft and the weight of the curtain, and not on the motor's torque. Anti-fall back devices are required in the relevant guidelines for roller shutters weighing 20 kg or more in front of doors or passages.

Scope of delivery: 1 piece
