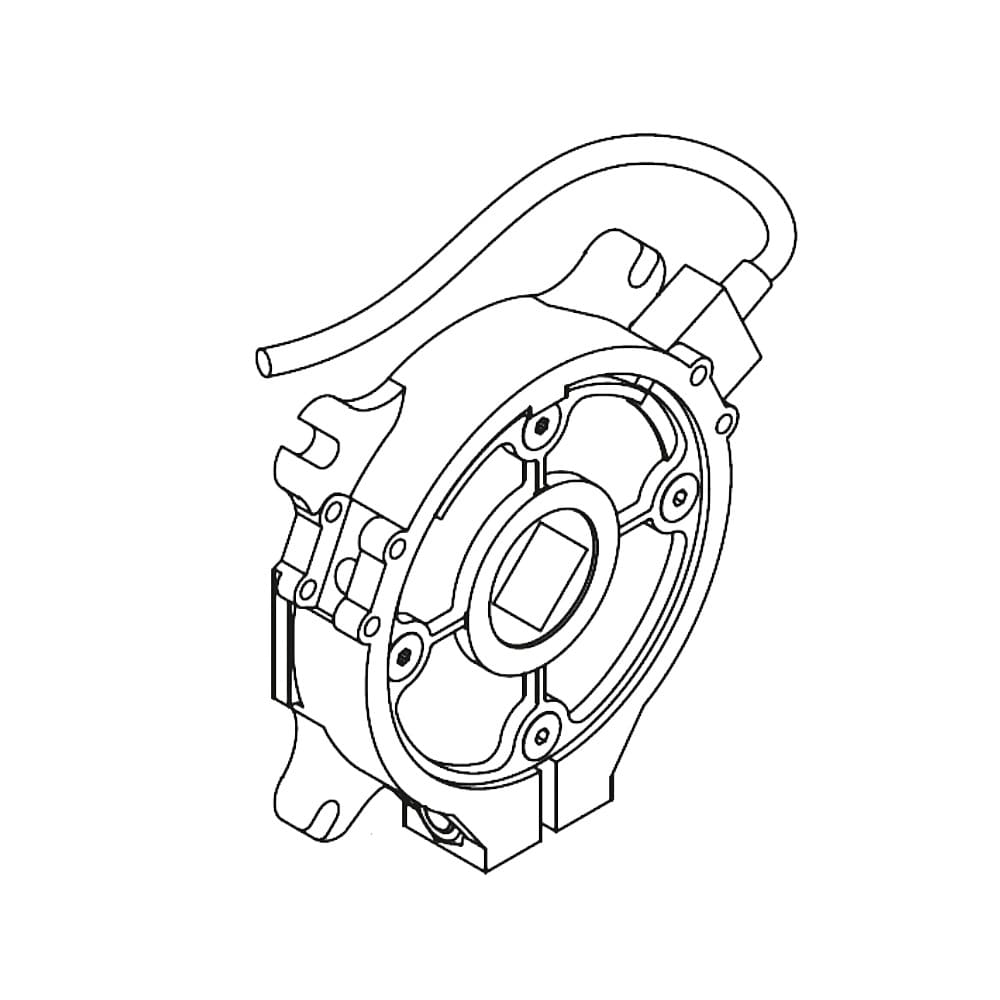

Heroal anti-drop safety device Md 95Nm

ITEM IS SOLD TO TRADERS ONLY!

5102

• Catch device anti-drop safety device Md 95Nm
• Can be used on left and right
• Max. torque: 95 Nm
• Max. catch torque: 545 Nm
• Max. winding radius: 130 Nm
• Square bore
• Operating speed: max. 22min-1

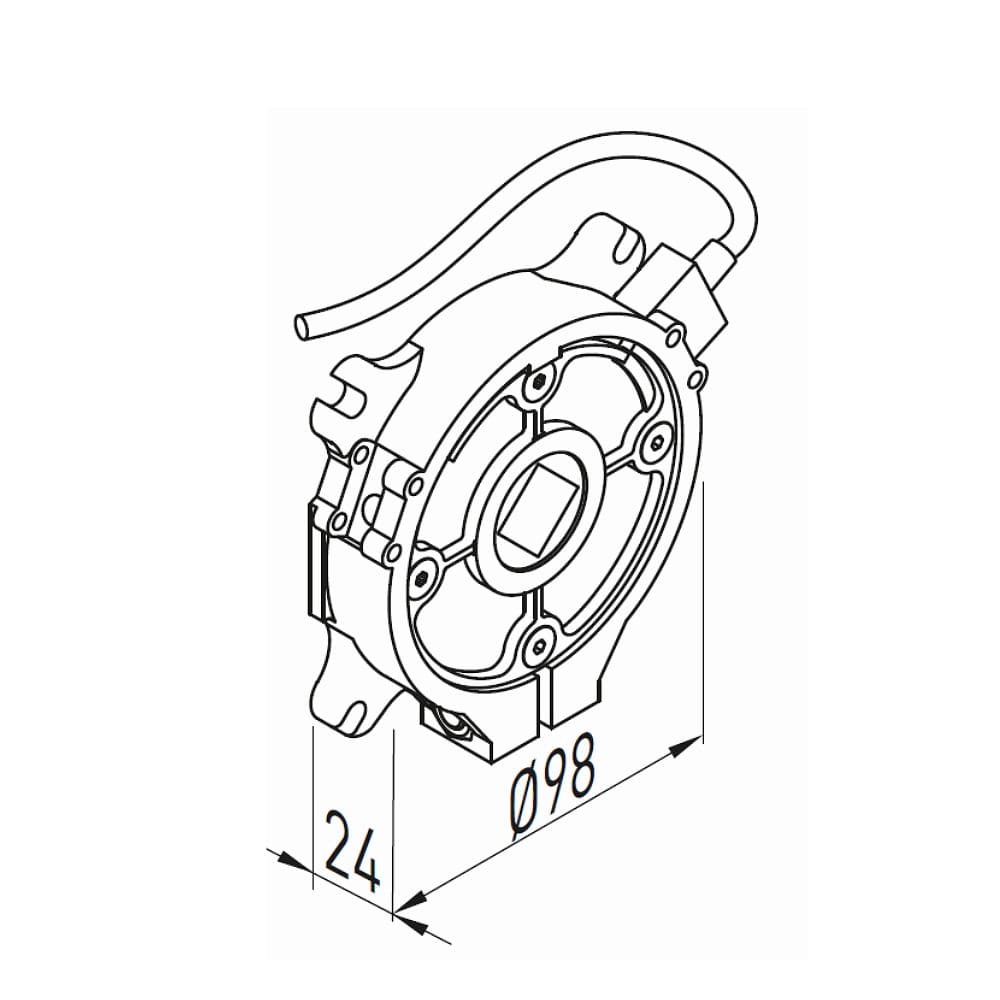

• Overall dimensions: 24x98 mm
• Cable length: 5.0 m
• Material: Metal
• Color: Silver

Scope of delivery: 1 piece

ATTENTION: The torque of the anti-drop safety device and the motor have different values. The choice of anti-drop safety device depends on the shaft and the weight of the curtain and not on the motor's torque. Anti-drop safety devices are required by relevant guidelines for roller shutters weighing 20 kg or more in front of doors or passages.
