Hersteller: Elero

FG Artikel Nummer: 396144

169,95€

Taxes included. Shipping calculated at checkout.

Low stock

Express shipping available

Elero radio roller shutter motor VariEco M10-868 10Nm

DISCONTINUED PRODUCT. NO LONGER IN PRODUCTION!

349220106

Radio-controlled tubular motor with electronic limit switch
with integrated elero ProLine radio receiver
Bidirectional radio communication at 868 MHz with routing procedure
Particularly robust and flexible in its application
Recommended application: Open and semi-open folding arm awnings , roller shutters , vertical awnings

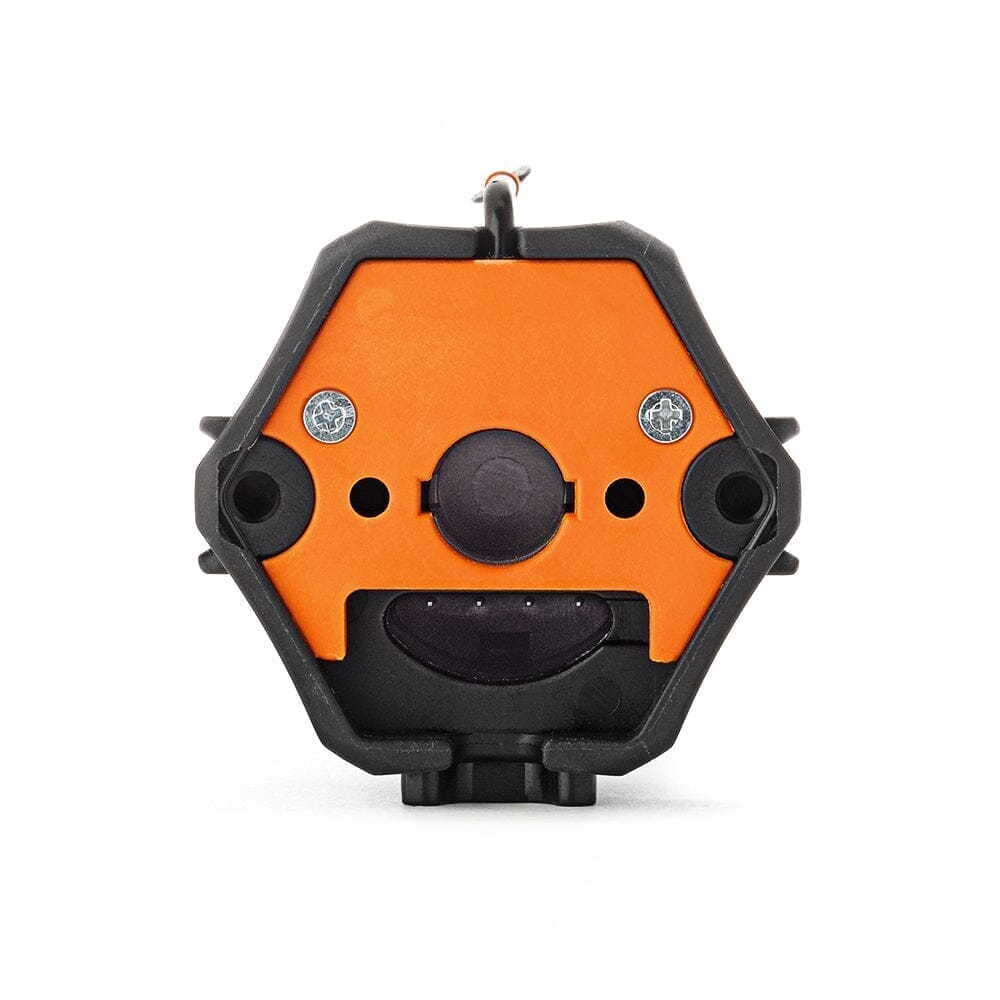

The end positions can be set via the switches on the motor head without a special adjustment set.
The upper and lower end points (stops) of this roller shutter motor are set directly on the motor head using the supplied adjustment pin.

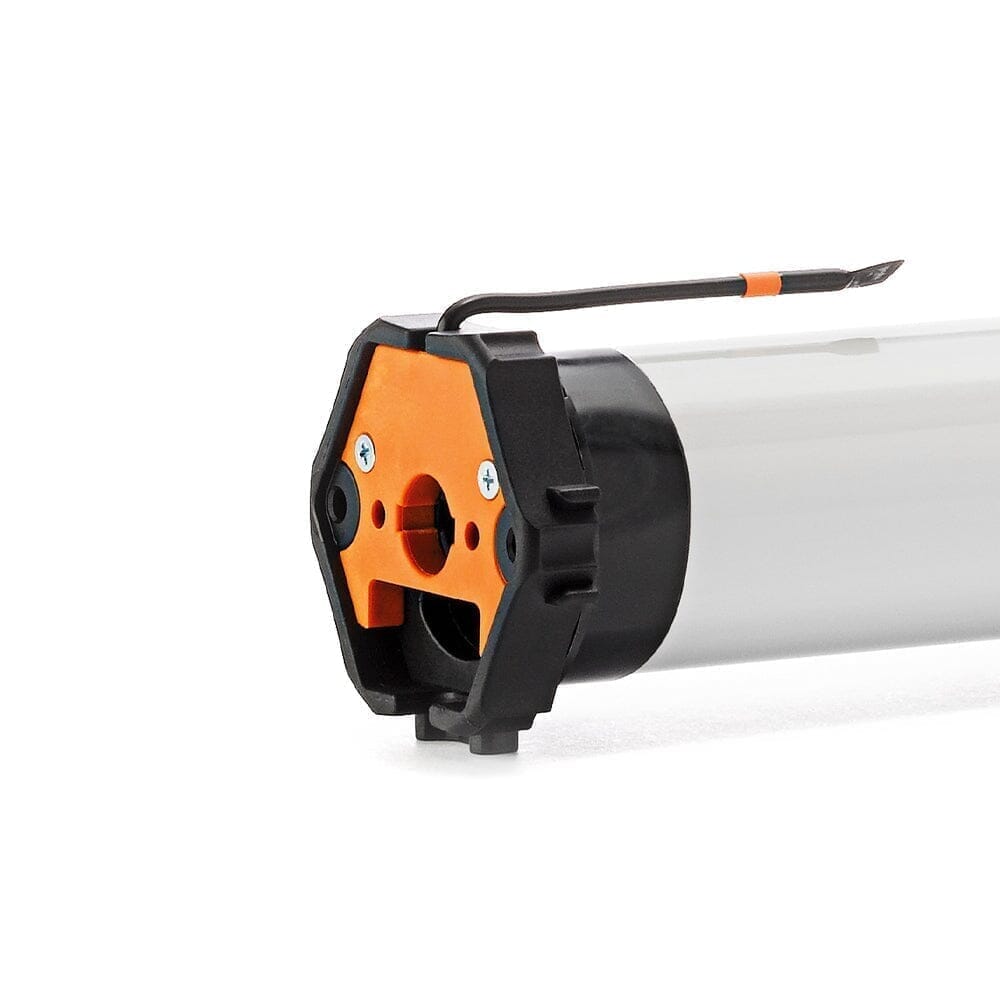

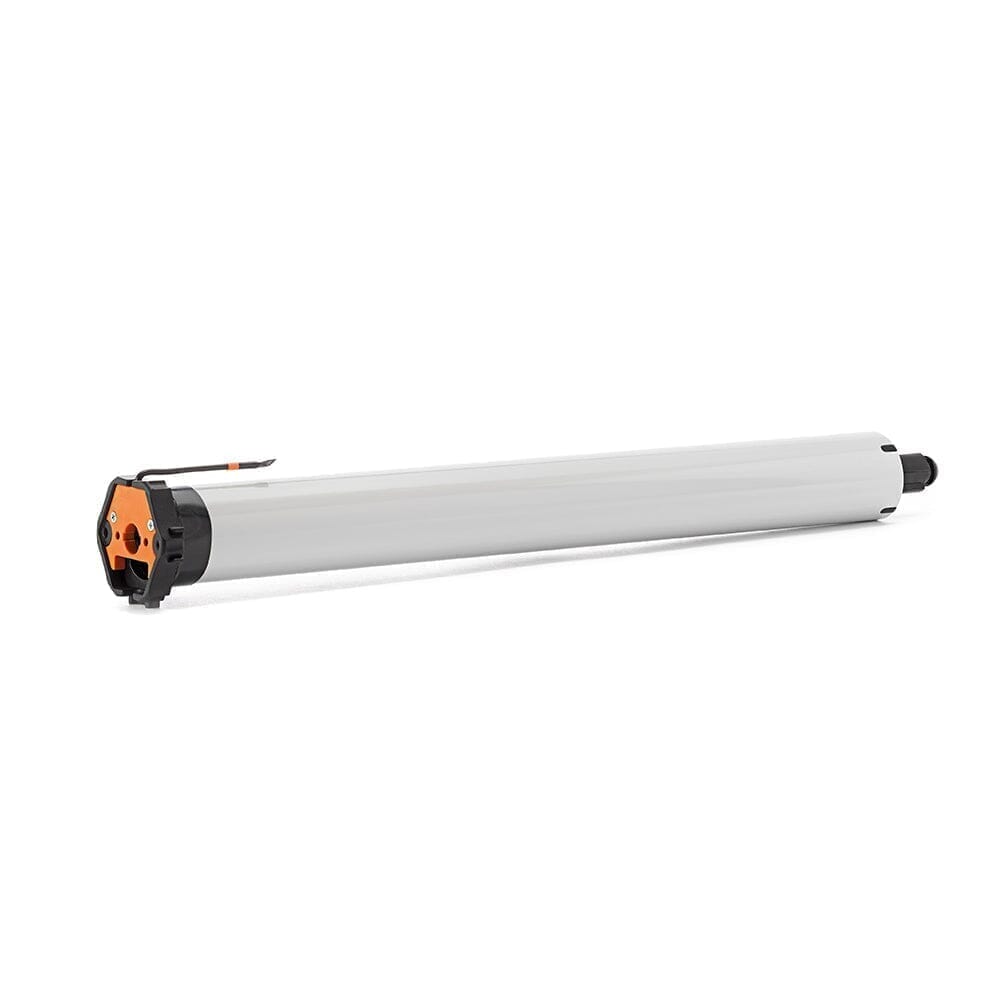

Image similar (delivery without adapter, drive, bearing)
Silent soft brake
Suitable for right/left installation
Design type: Medium (from SW 50)
Pipe diameter: 45 mm
Rated torque: 10 Nm
Rated speed: 14 rpm.
Nominal voltage: 230 V
Frequency: 50 Hz
Power consumption: 140 W
Current consumption: 0.6 A
Protection rating: IP44
Frequency: 50Hz
Total length: 477 mm
Material: Steel and plastic
Color: Gray
