Hersteller: Elero

FG Artikel Nummer: 396037

198,95€

Taxes included. Shipping calculated at checkout.

Low stock

Express shipping available

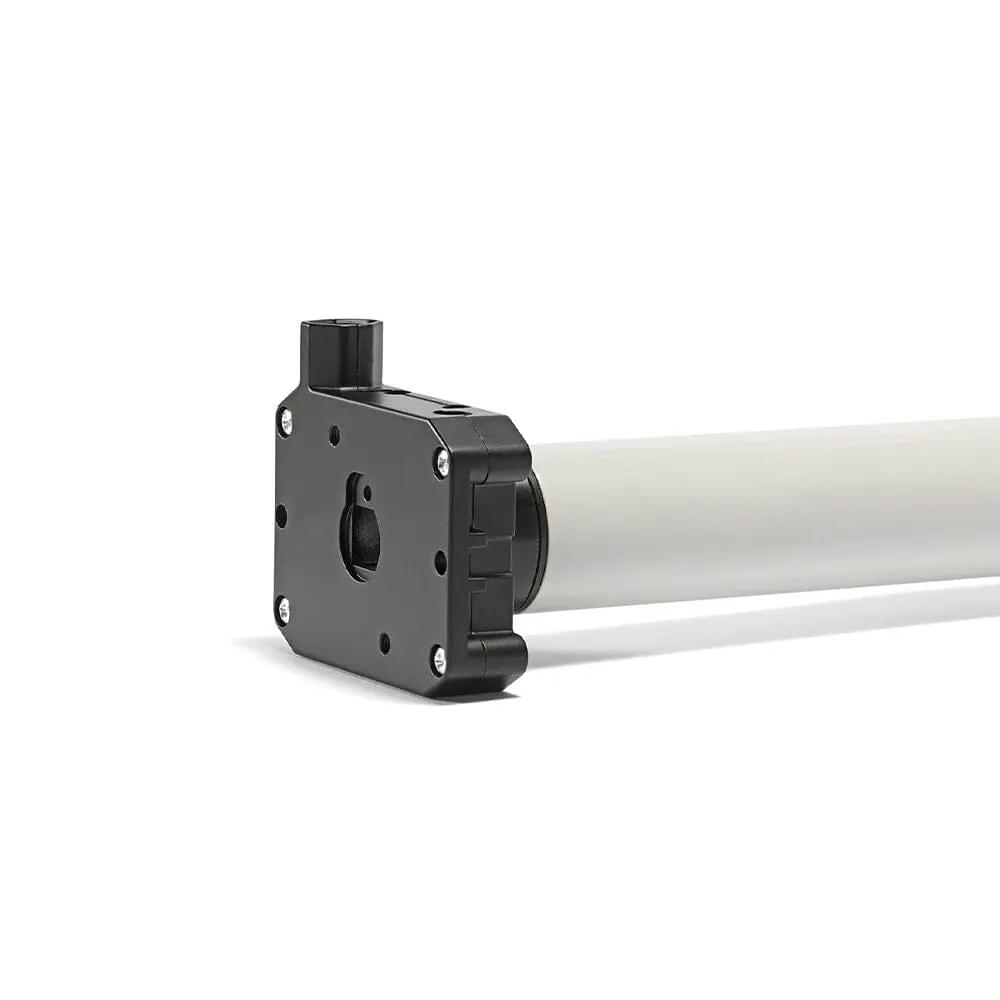

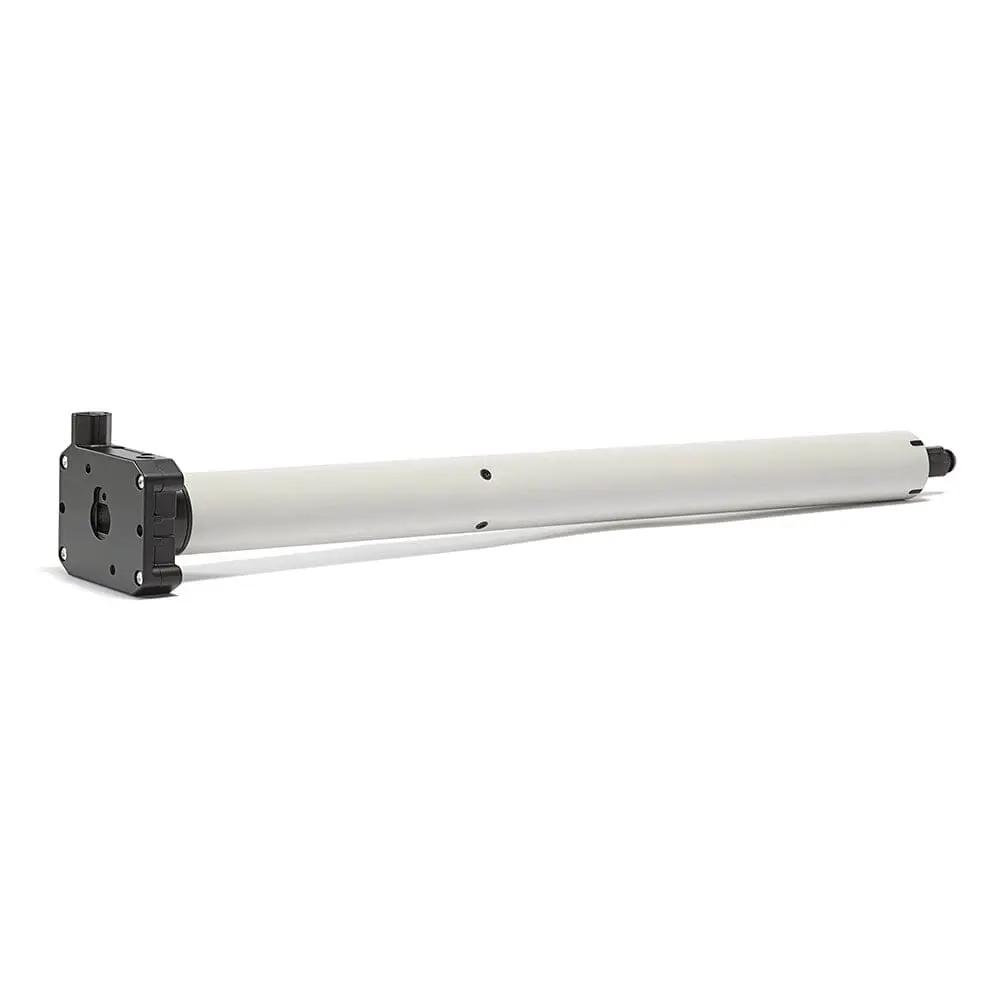

Elero tubular motor RolTop/D+ M10 NHK

34113.0001

Tubular motor
Mechatronic end position detection with soft shutdown
with emergency hand crank system NHK
with obstacle detection
Wired
Versatile
Mechatronic end position detection with soft shutdown
Self-learning end positions with relief function
The intelligent drive does not need to be re-programmed after crank operation; it automatically detects the end positions
Can only be used in conjunction with rigid shaft connectors
Mechatronic end position detection with soft shutdown
Intelligent force measurement for optimal protection of the roller shutter
Curtain protection up/down and free travel
Suitable for right/left installation
Self-learning end positions with relief function
Design: Medium (from SW 50)
Translation operation NHK : 18:1
Connection NHK: 4-edge socket 7mm and 6-edge socket 4mm
Nominal torque: 10Nm
Rated speed: 14 rpm
Rated voltage: 230 V
Frequency: 50Hz
Power consumption: 140W
Current consumption: 0.60A
Protection class IP44
Frequency 50Hz
Total length: 544mm
Material: steel and plastic
Color: Gray
