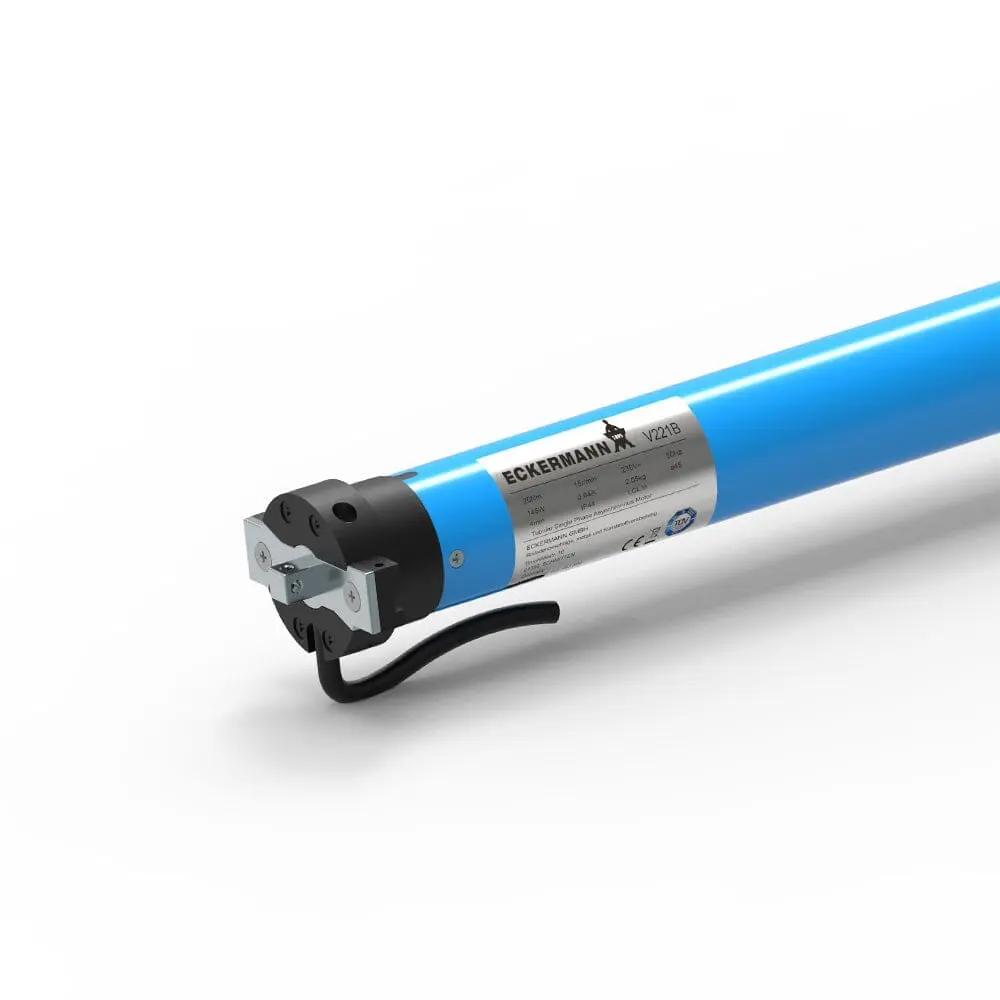

Eckermann roller shutter motor Ø45 20/15 20Nm

V221BSH

• Wired Electronic Motor
• Rated torque: 20 Nm

• Rated speed: 15 rpm.

• Pipe diameter: 45mm

• Nominal voltage 230 V

• Power consumption: 145W

• Frequency: 50Hz
• Net weight: 2.1 kg
• Suitable for: SW60
• Connection cable: 2 meters with VDE approval
• Protection rating: IP44
• Total length: 476 mm
• Thermal safety shutdown: 4 minutes
• Operating temperature: -10 °C to +50 °C
• CE and TÜV certified
• Color: Blue

• Material: Steel and plastic

Scope of delivery: 1 motor with connection cable
