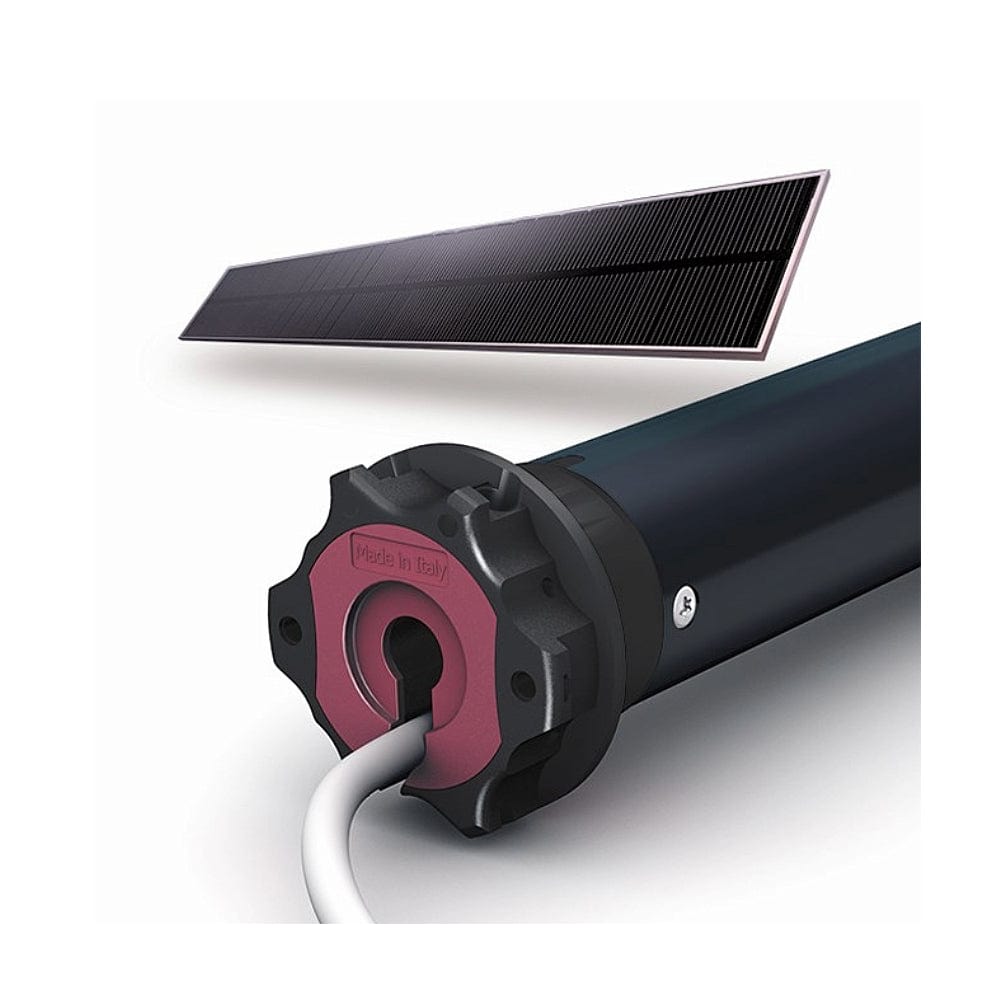

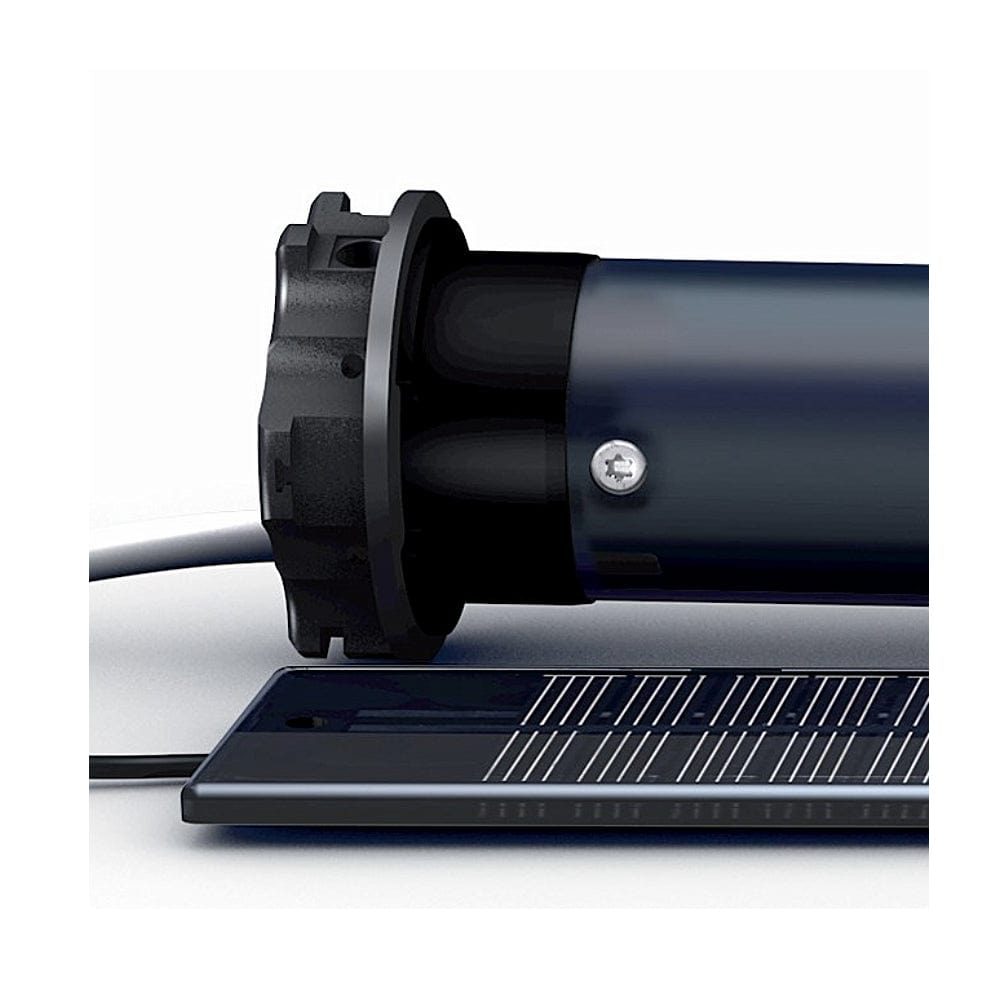

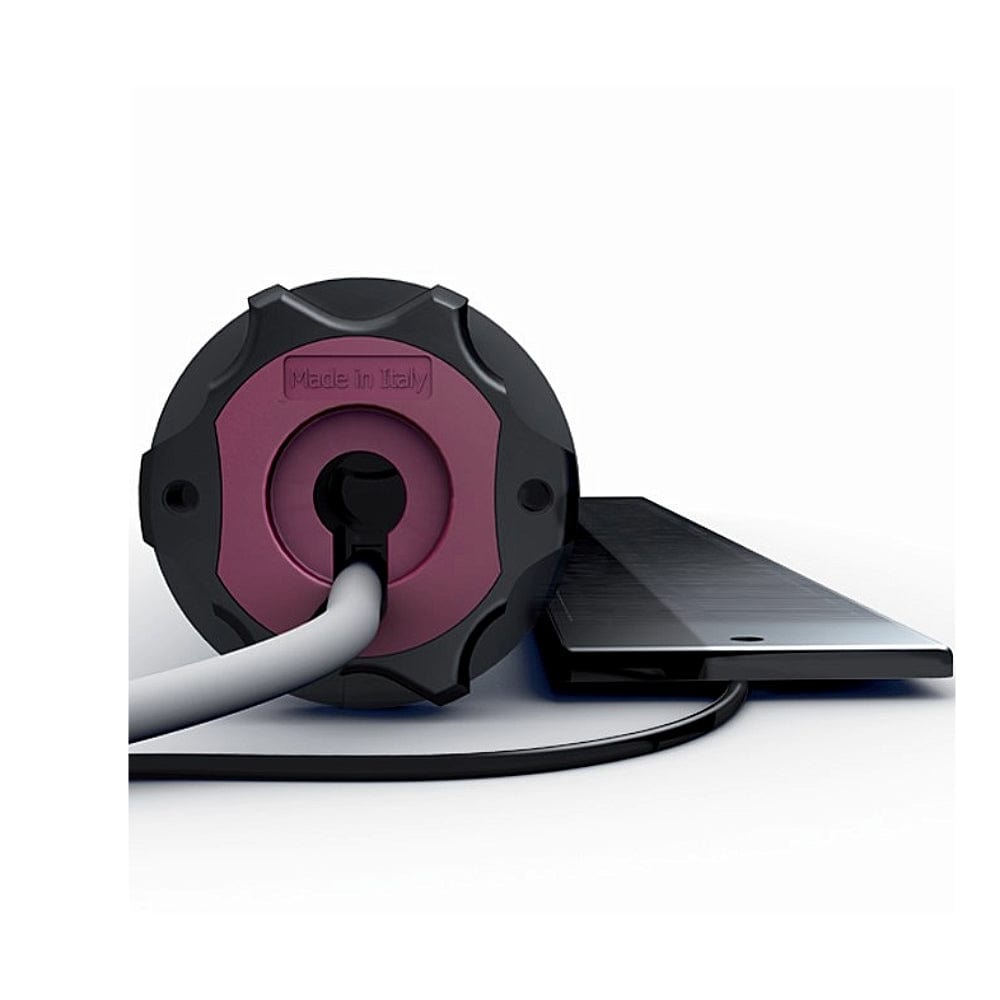

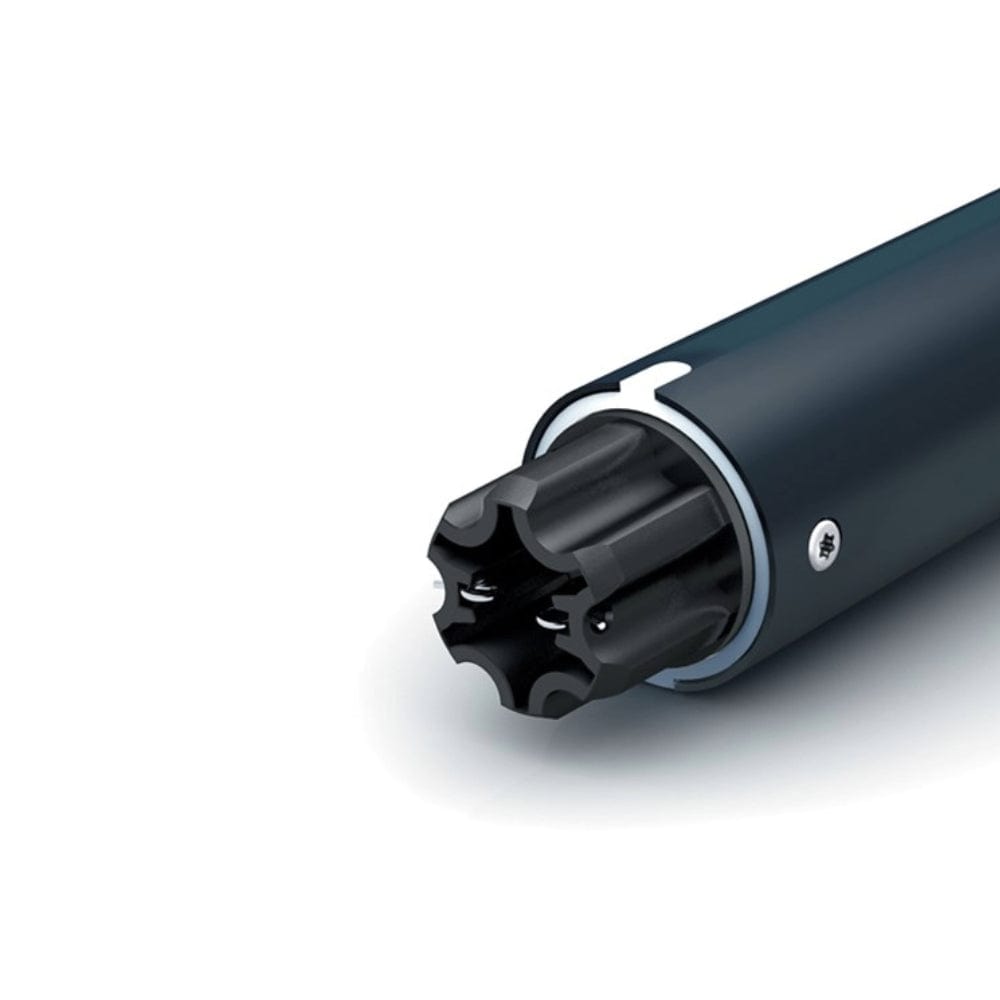

Cherubini radio solar drive Lumen S-RX 10/17 10Nm Set

CDR45101700

• Radio solar drive lumen
• with integrated radio receiver

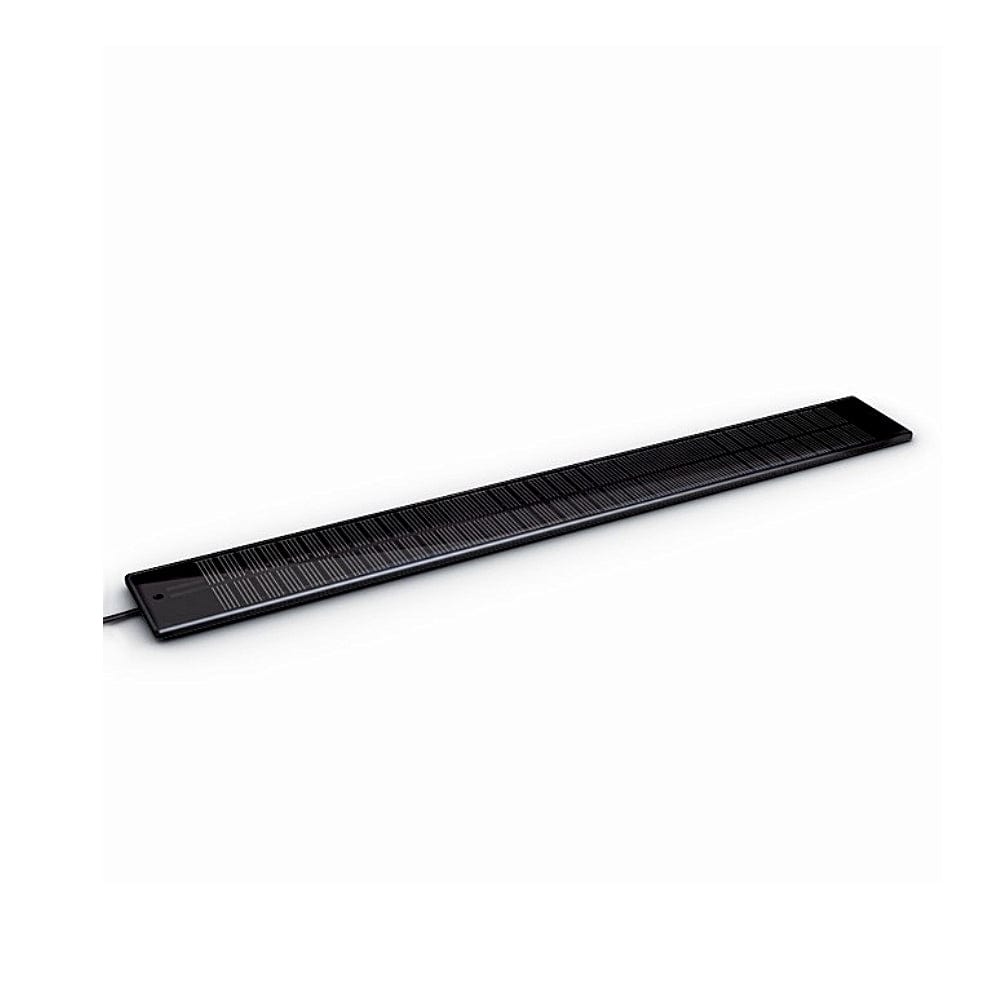

• with solar panel
• with battery
• Simple and finely graduated adjustment of the end positions via the hand-held transmitter.
  The encoder technology ensures absolute accuracy and reliability in maintaining the end positions
• In daily use, the spring-braked gear increases the quality of the roller shutter movement, making the LUMEN S-RX the best choice for quiet operation, even indoors. The speed adjustment near the end stops allows for smoother and more comfortable contact at the stop.
• The ETFE material ensures better durability of the panel than epoxy resin
• The monocrystalline panel can operate at temperatures between -40℃ and + 85℃
• Panel dimensions: L 470 mm x W 60 mm x H 4.5 mm
• Panel performance: 5 W
• DC brush motor much more efficient than a normal asynchronous motor
• Charging with an external charger is possible thanks to the AC-DC connection
• Full charge 16 to 24 hours in direct sunlight; 3 to 4 hours with 20W AC-DC adapter
• Very secure rolling code decoder system
• Easy programming and operation; all setting operations are confirmed by small rotations of the motor
• Manual and semi-automatic settings of the end positions
• Anti-freeze protection and blockage detection during up and down movement with three-stage sensitivity adjustment
• Possibility of setting a middle position
• Programming using a handheld transmitter
• Diameter: Ø45 mm
• Torque : 10 Nm
• Speed : 17 rpm
• Power : 60 W
• Voltage (v/Hz) : 230/50
• Current consumption: 5 A

• Cable length: 0.3 m
• Protection class : IP44

• Length: 420 mm
• Color: Black Red Blue
• Material: steel and plastic


Scope of delivery: 1 set (motor, solar panel and battery)
