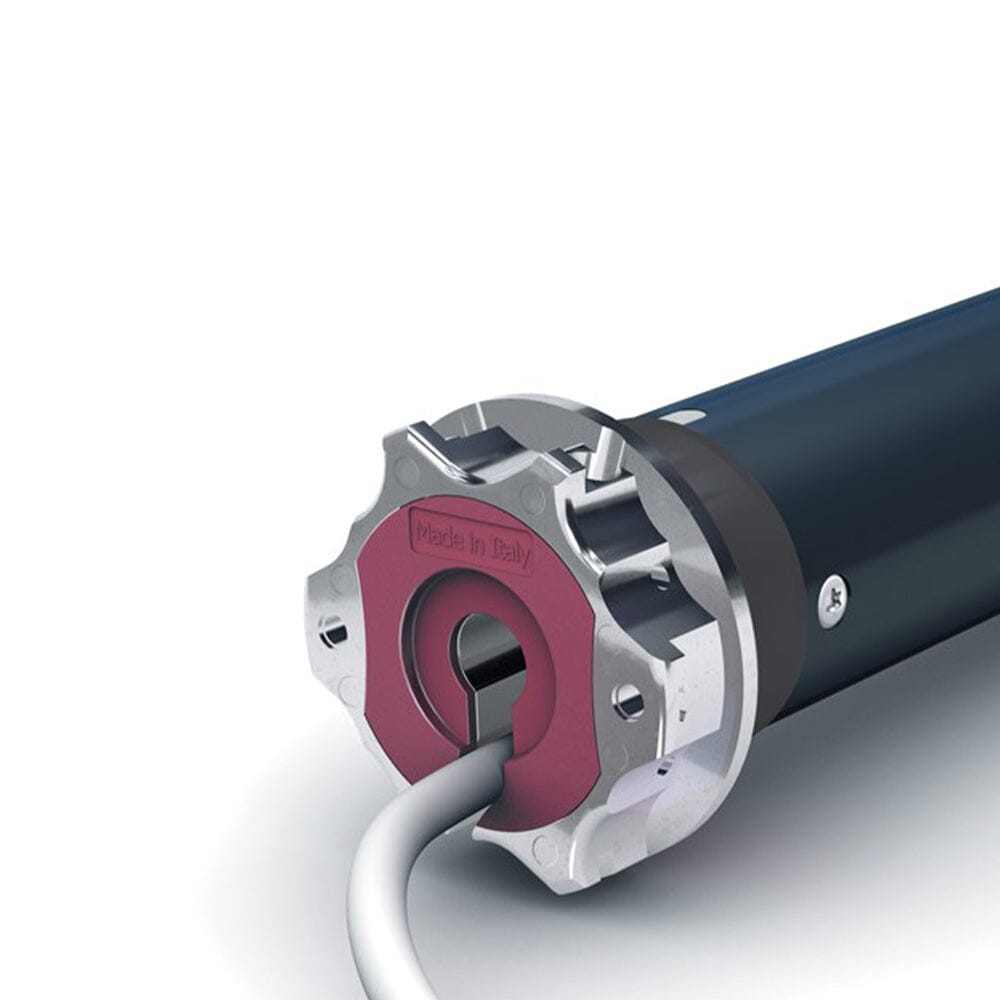

Cherubini radio awning motor tubular motor Garda RX 15/17 15Nm

CMT45151700

• Radio-controlled tubular motor
• Suitable for: Roller shutters and awnings
• The metallic engine head allows for direct mounting of the engine without additional engine mounts.
• Radio-controlled motor with radio receivers
• Reliable and finely graduated adjustment of the end-of-life shut-off
• The star-shaped metal output shaft gives the motor great reliability and stability.
• Simple programming and operation; all setting operations are confirmed by small rotations of the motor.
• Wireless connection to the WindTec, Mistral and Rugiada weather stations
• Pushbutton connection
• Diameter: Ø45 mm
• Suitable for: SW50 and SW60
• Torque: 15 Nm
• Speed: 17 rpm
• Power: 170 W
• Voltage (V/Hz): 230/50
• Current consumption: 0.80 A
• Cable length: 2.5 m
• Number of cable cores: 4
• Operating time (min): 4
• Protection rating: IP44

• Length: 646 mm

• Material: Steel and plastic

• Color: Black, Red, Blue


Scope of delivery: 1 motor with connection cable (without adapter, drive wheel, bearings)
