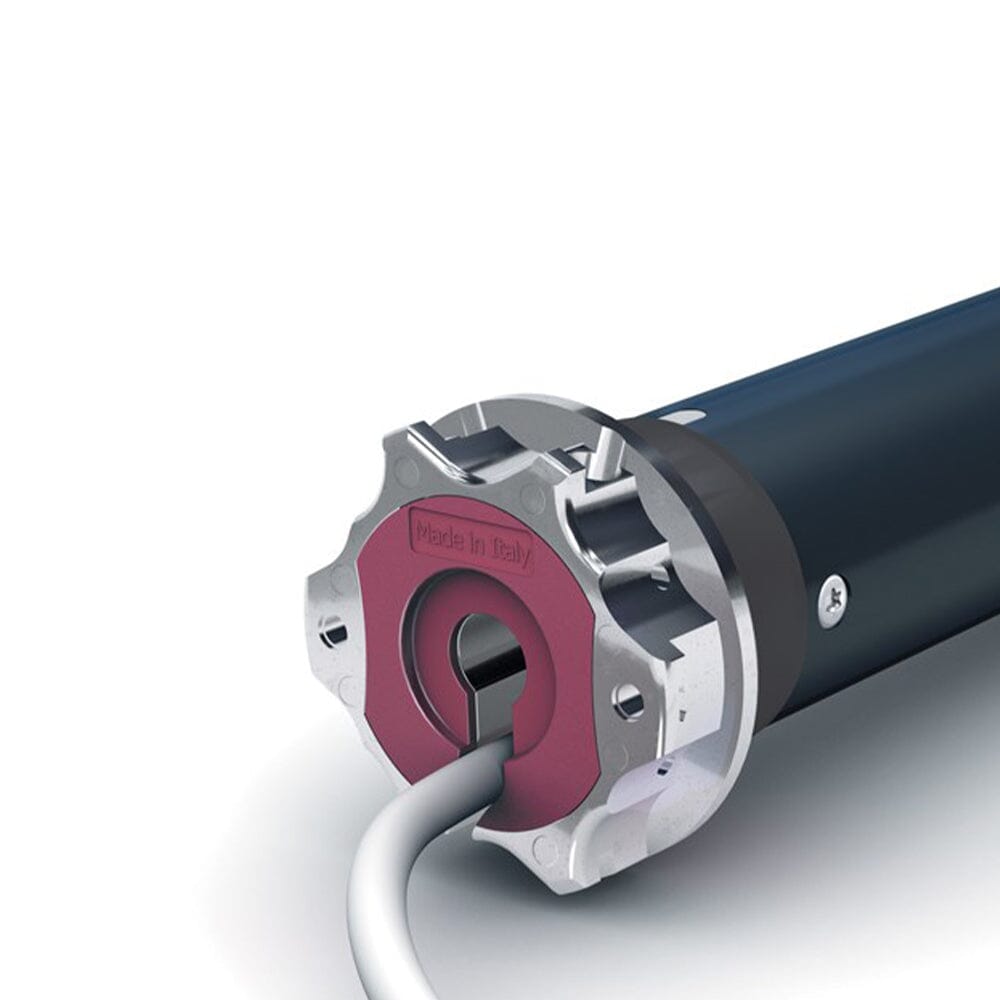

Cherubini radio awning motor tubular motor Garda RX 10/17 10Nm

CMT45101700

• Tubular motor for roller shutters and awnings
• The metallic motor head allows direct mounting of the motor without additional motor mounts
• Radio motor with radio receiver
• Reliable and finely graduated adjustment of the limit switch
• The star-shaped metal output gives the engine great reliability and stability
• Easy programming and operation; all setting operations are confirmed by small rotations of the motor
• Wireless connection to the weather stations WindTec, Mistral and Rugiada
• Button connection
• Diameter: Ø45 mm
• Suitable for: SW50 and SW 60
• Torque: 10 Nm
• Speed: 17 rpm
• Power: 150 W
• Voltage (v/Hz): 230/50
• Current consumption: 0.70 A
• Cable length: 2.5 m
• Number of cable cores: 4
• Operating time (min): 4
• Protection class: IP44

• Length: 646 mm
• Color: Black Red Blue
• Material: steel and plastic

• Made in Italy

Scope of delivery: 1 motor with connecting cable (without adapter, driver, bearing)
