WIR eWickler Standard eW910-M for surface mounting 15mm belt

1001-000030

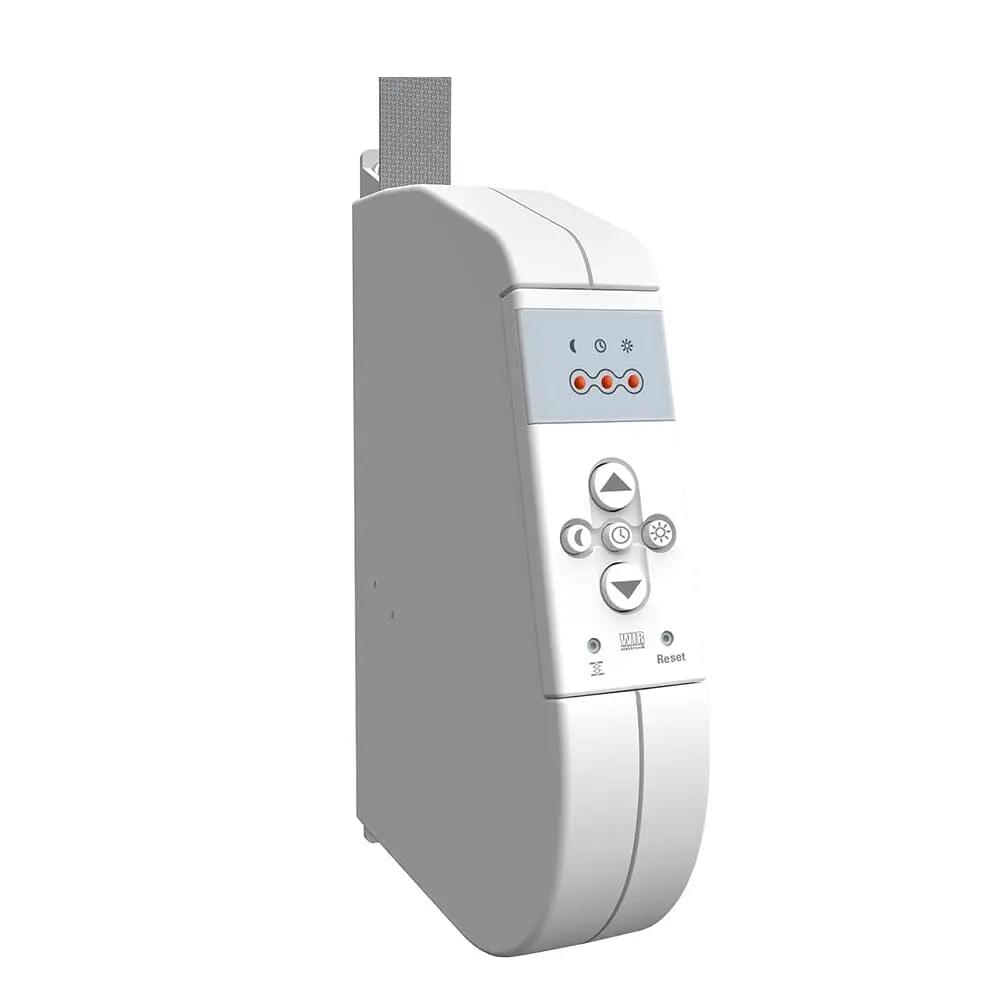

The surface-mounted eW910-M features adjustable switching times for raising and lowering the shutters and an internal, mains-synchronized clock. Three LEDs indicate the active functions. A particularly clever feature: the LEDs automatically dim when the shutters are closed.

The soft start and soft stop ensure quiet operation of the roller shutters, even in intermediate positions. Our accessories, such as the sun sensor, allow you to make your electric belt winder even smarter. Installation is easy and requires no breaking open walls or expensive painting or wallpapering. Our eWinder is therefore ideal for quick and easy retrofitting.

• Adjustable switching times for raising and lowering (switching commands are saved and repeated every 24 hours)
• internal, network-synchronous clock
• LEDs indicate the activated functions
• the brightness of the LEDs is reduced when the shutters are closed
• Individual sun and twilight control with S/D sensor possible
• gentle soft start and soft stop, even in intermediate positions
• Electronic runtime and load monitoring to protect the motor and in case of roller shutter malfunctions
• Overrun protection / overload shutdown
• 20-hour power reserve
• Winder is delivered without belt

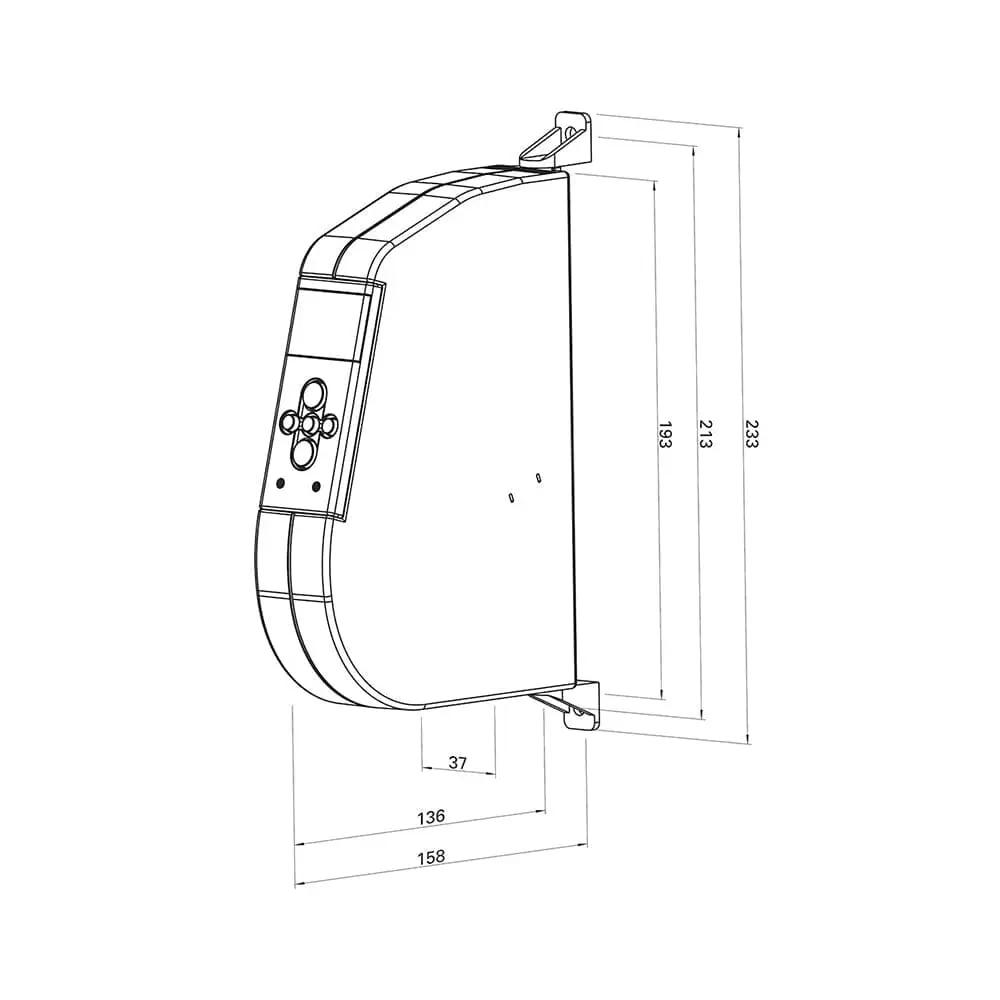

• Housing dimensions: 193 x 158.5 x 37 (H/D/W)

• Mounting hole spacing: 213 mm

• Temperature range: +4 °C to +40 °C

• Supply voltage: 230 V ~ 50 Hz

• Rated power (maximum): 120 W

• Nominal torque: 11 Nm

• Rated speed: 32 rpm, regulated

• Pulling power (maximum): 45 kg

• Strap width: 15 mm

• Winding capacity: 6.3 m (1 mm webbing thickness)

• Permissible roller shutter area: approx. 6 sqm at 5 kg/sqm, approx. 3 sqm at 10 kg/sqm


Scope of delivery: 1 piece
