WIR eWickler Comfort eW920 for surface mounting 23mm belt strap

1001-000029

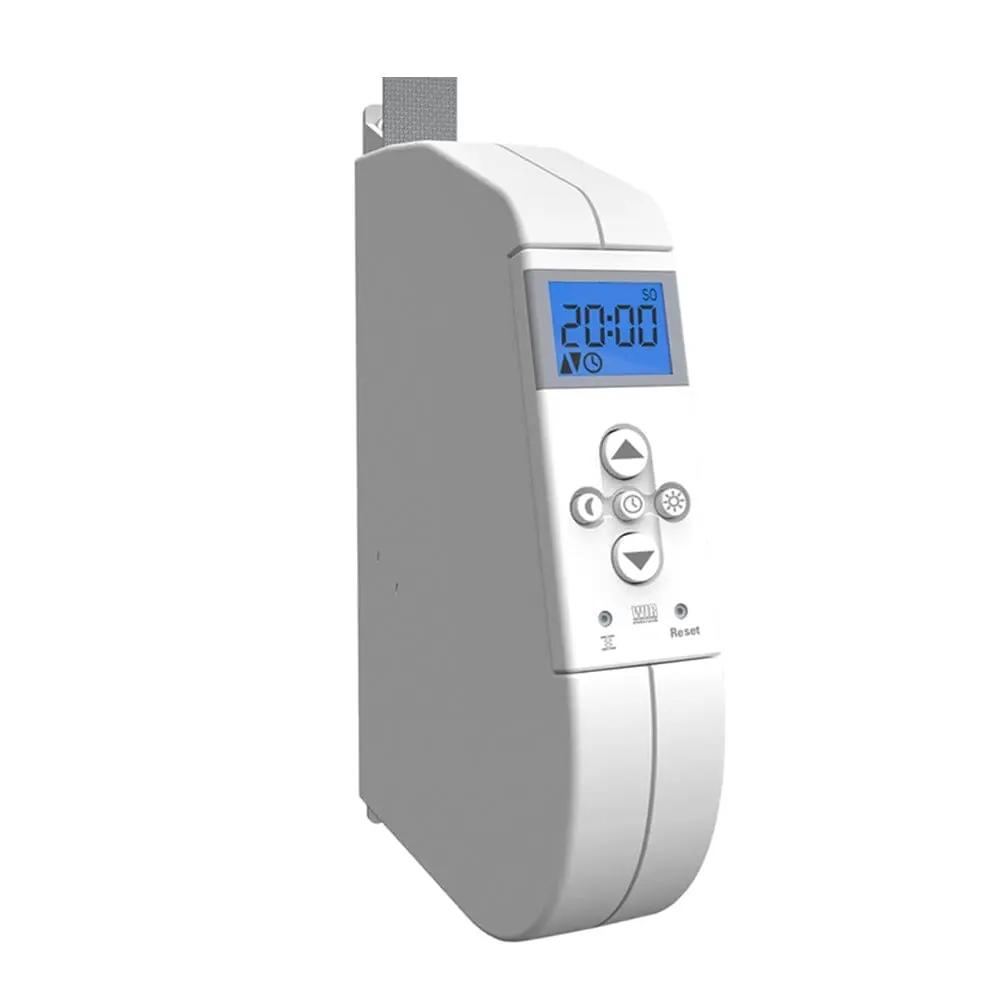

The surface-mounted eW920 features adjustable switching times for raising and lowering the roller shutters and an internal, mains-synchronized clock. The large LCD display makes the time and functions easy to read and operate. A particularly clever feature: the display brightness can be individually adjusted.

The soft start and soft stop ensure quiet operation of the roller shutters, even in intermediate positions. Our accessories, such as the sun sensor, allow you to make your electric belt winder even smarter. Installation is easy and requires no breaking open walls or expensive painting or wallpapering. Our eWinder is therefore ideal for quick and easy retrofitting.

• individually adjustable switching times for raising and lowering
• automatic summer/winter time changeover

• Installation wizard for easy commissioning
• large, easy-to-read LC display with individually adjustable lighting
• Individual sun and twilight control with S/D sensor possible
• gentle soft start and soft stop, even in intermediate positions
• Electronic runtime and load monitoring to protect the motor
  and protection against roller shutter malfunctions
• Overrun protection / overload shutdown
• 20-hour power reserve
• Winder is delivered without belt

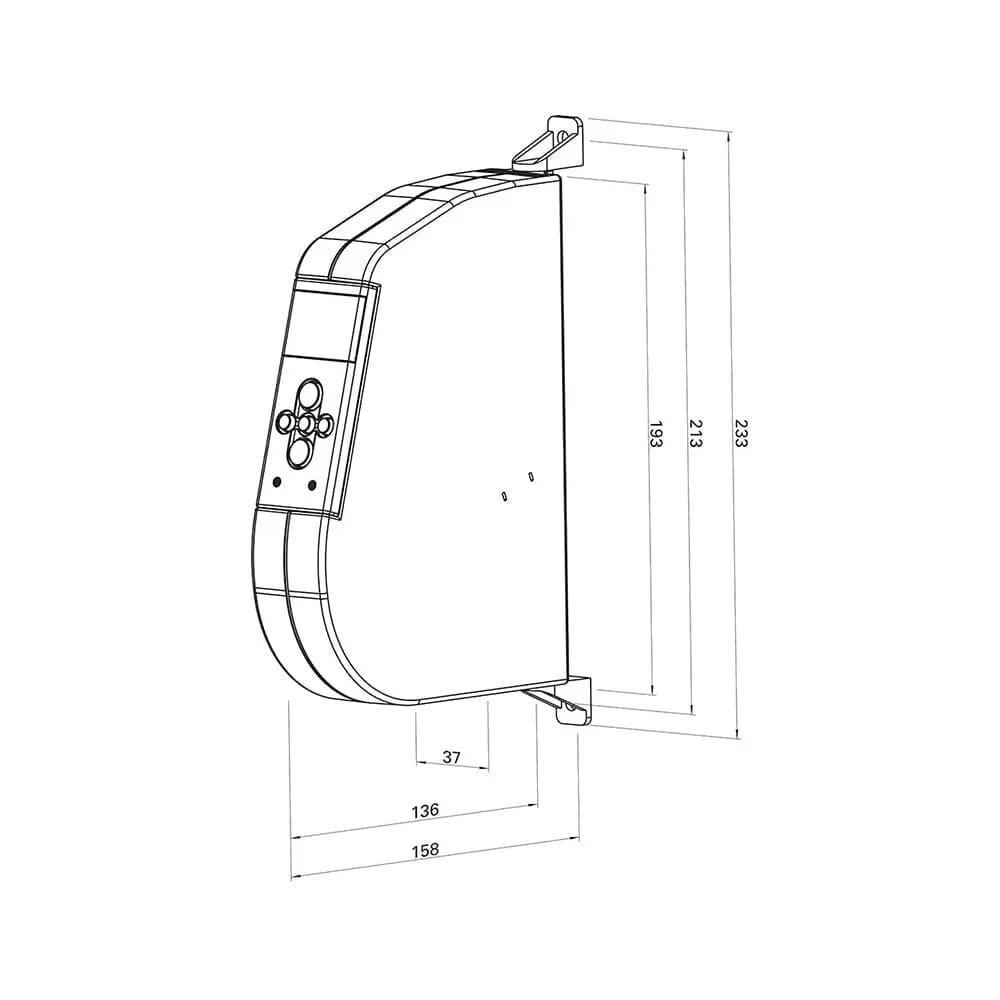

• Housing dimensions: 193 x 158.5 x 37 (H/D/W)

• Mounting hole spacing: 213 mm
• Temperature range: +4 °C to +40 °C

• Supply voltage: 230 V ~ 50 Hz

• Rated power (maximum): 120 W

• Nominal torque: 11 Nm

• Rated speed: 32 rpm, regulated

• Pulling power (maximum): 45 kg

• Strap width: 23 mm

• Winding capacity: 6.3 m (1 mm webbing thickness)

• Permissible roller shutter area: approx. 6 sqm at 5 kg/sqm, approx. 3 sqm at 10 kg/sqm


Scope of delivery: 1 piece
