WIR eWickler Standard eW810 for flush mounting 17-23mm belt

1001-000003

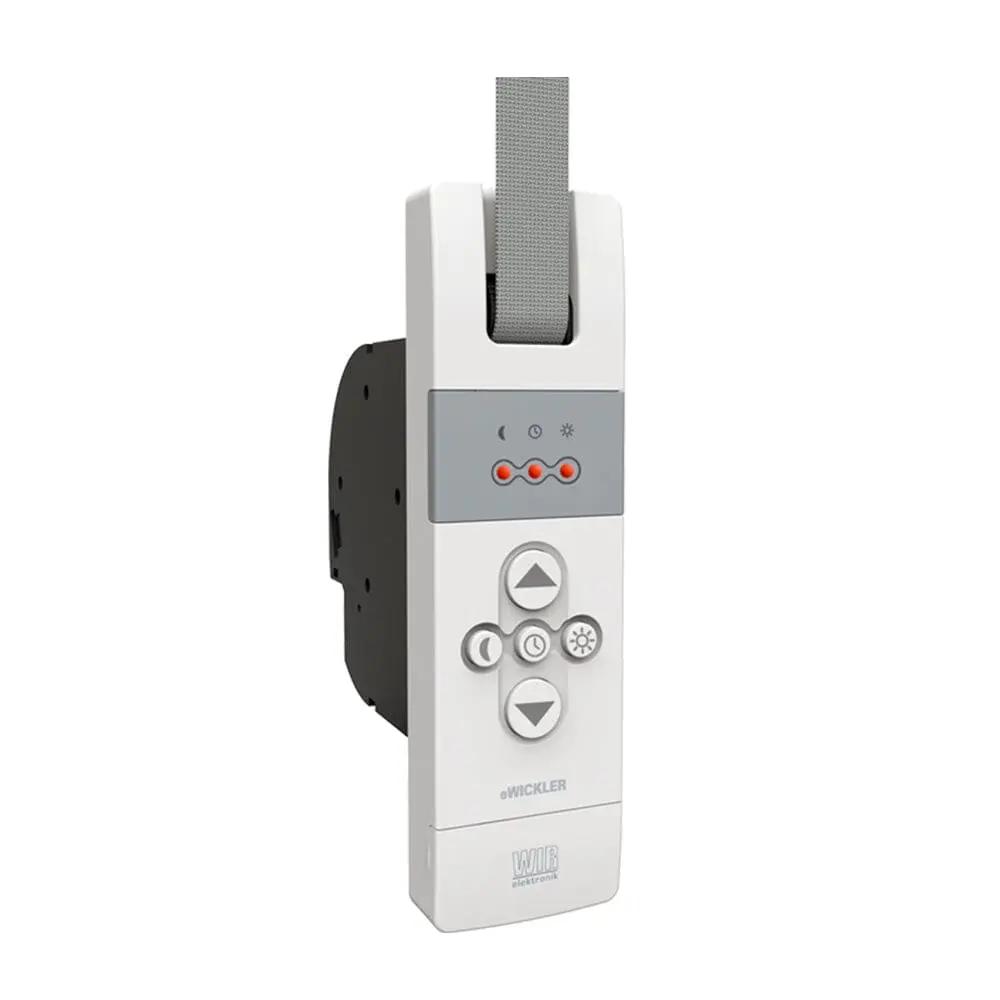

The flush-mounted eW810 features adjustable switching times for raising and lowering the shutters and an internal, mains-synchronized clock. Three LEDs indicate the active functions. A particularly clever feature: the LEDs automatically dim when the shutters are closed.

The soft start and soft stop ensure quiet operation of the roller shutters, even in intermediate positions. Our accessories, such as the sun sensor, allow you to make your electric belt winder even smarter. Installation is easy and requires no breaking open walls or expensive painting or wallpapering. Our eWinder is therefore ideal for quick and easy retrofitting.

• Electronic belt winder for all common roller shutters with 17-23 mm
• for installation in existing belt boxes
• 20 hours power reserve in case of power failure
• individually programmable
• adjustable switching times for raising and lowering
  (Switching commands are saved and repeated every 24 hours)
• internal, network-synchronous clock
• LEDs indicate the activated functions
• the brightness of the LEDs is reduced when the shutters are closed
• Individual sun and twilight control with S/D sensor possible
• gentle soft start and soft stop, even in intermediate positions
• Electronic runtime and load monitoring to protect the motor
  and protection against roller shutter malfunctions
• Overrun protection / overload shutdown
• 20-hour power reserve
• Winder is delivered without belt

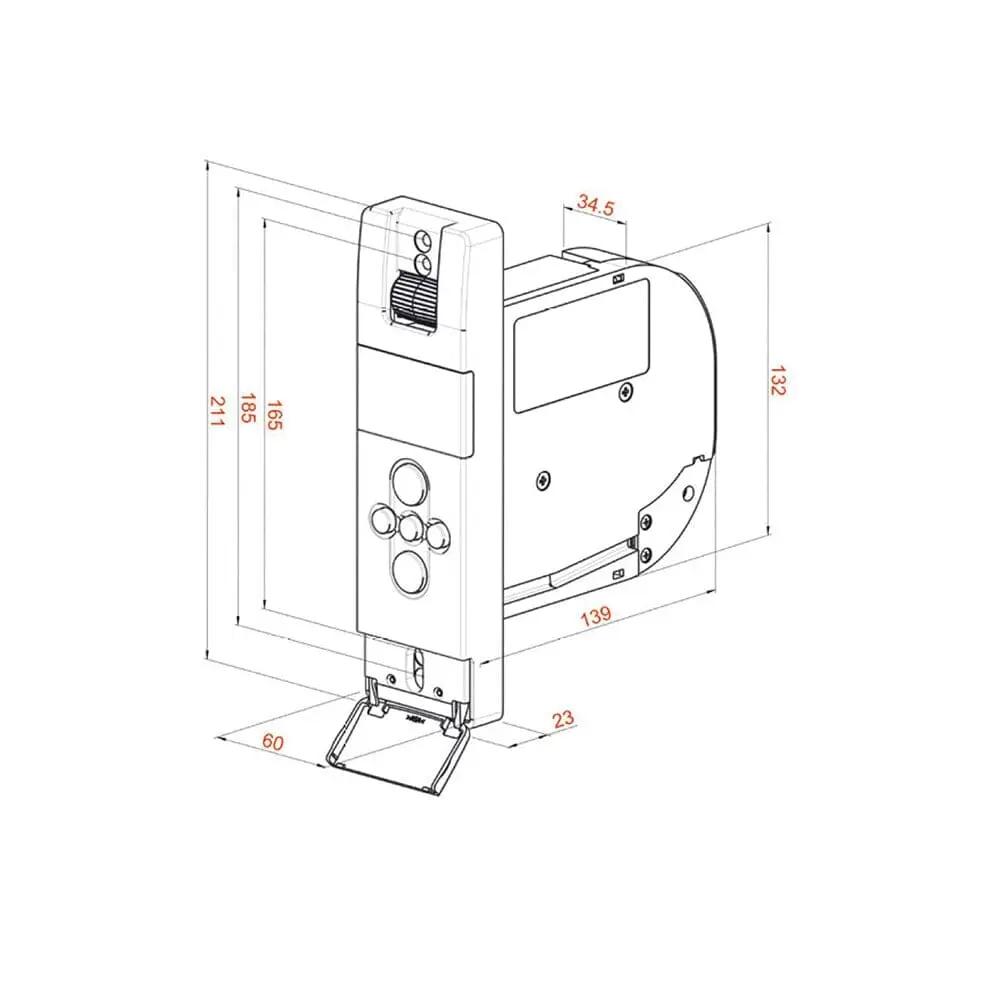

• Housing dimensions: 132 x 139 x 34.5 (H/D/W)

• Mounting hole spacing: 168 / 185 mm

• Temperature range: +4 °C to +40 °C

• Supply voltage: 230 V ~ 50 Hz

• Rated power (maximum): 120 W

• Nominal torque: 11 Nm

• Rated speed: 32 rpm, regulated

• Pulling power (maximum): 45 kg

• Belt width: 23 mm (eW810)

• Winding capacity: 6.3 m (1 mm webbing thickness)

• Permissible roller shutter area: approx. 6 sqm at 5 kg/sqm, approx. 3 sqm at 10 kg/sqm


Scope of delivery: 1 piece
