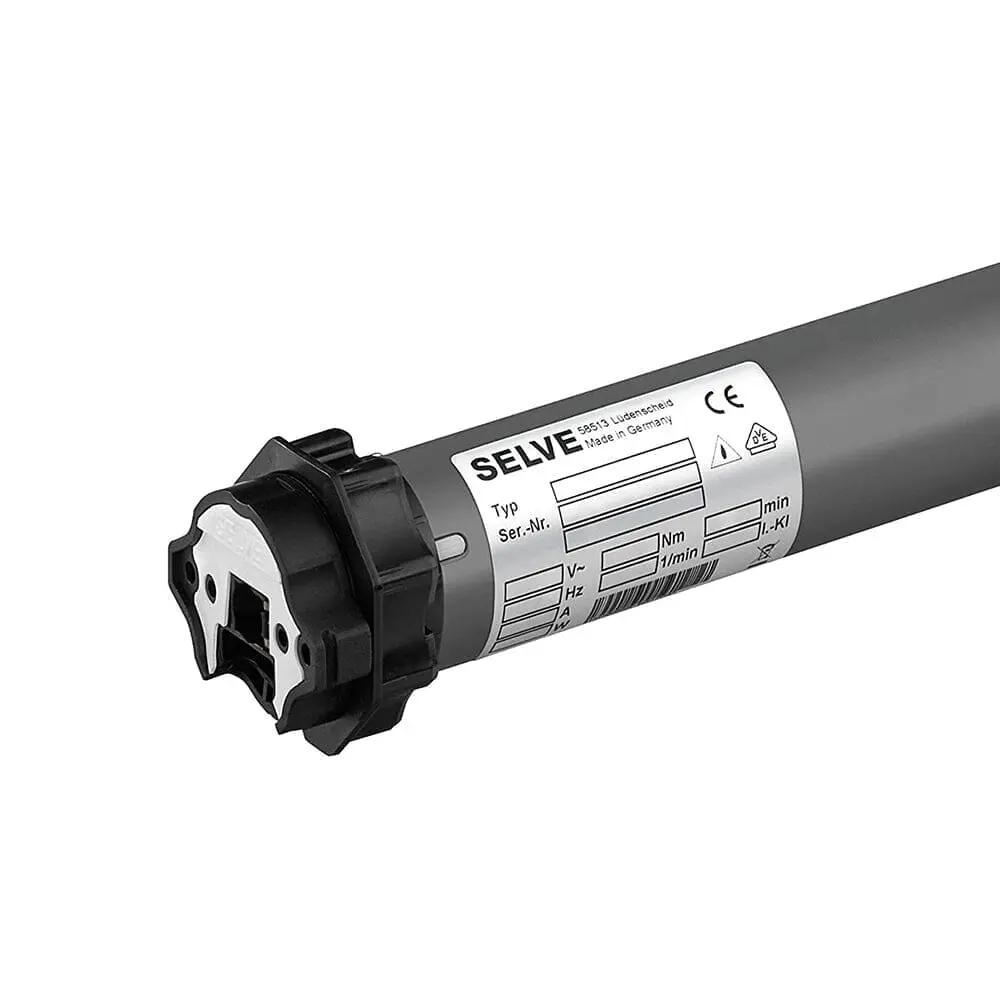

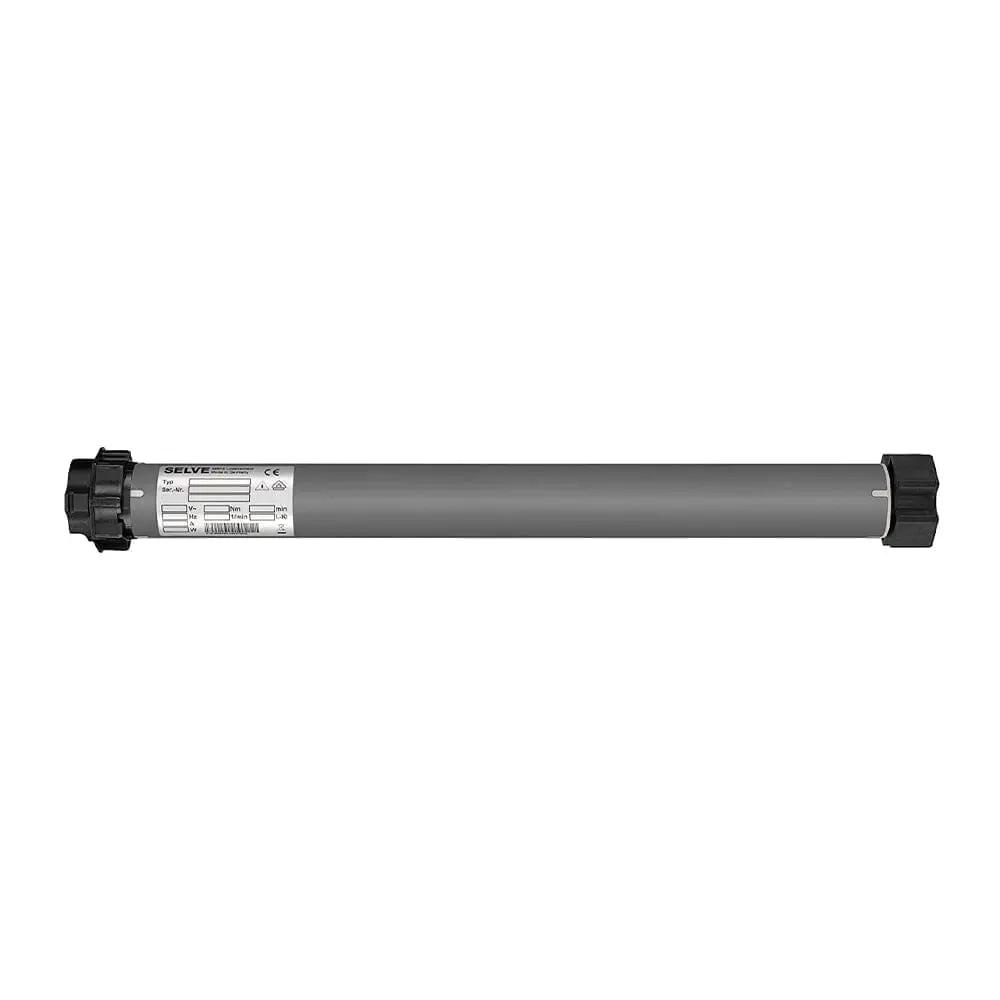

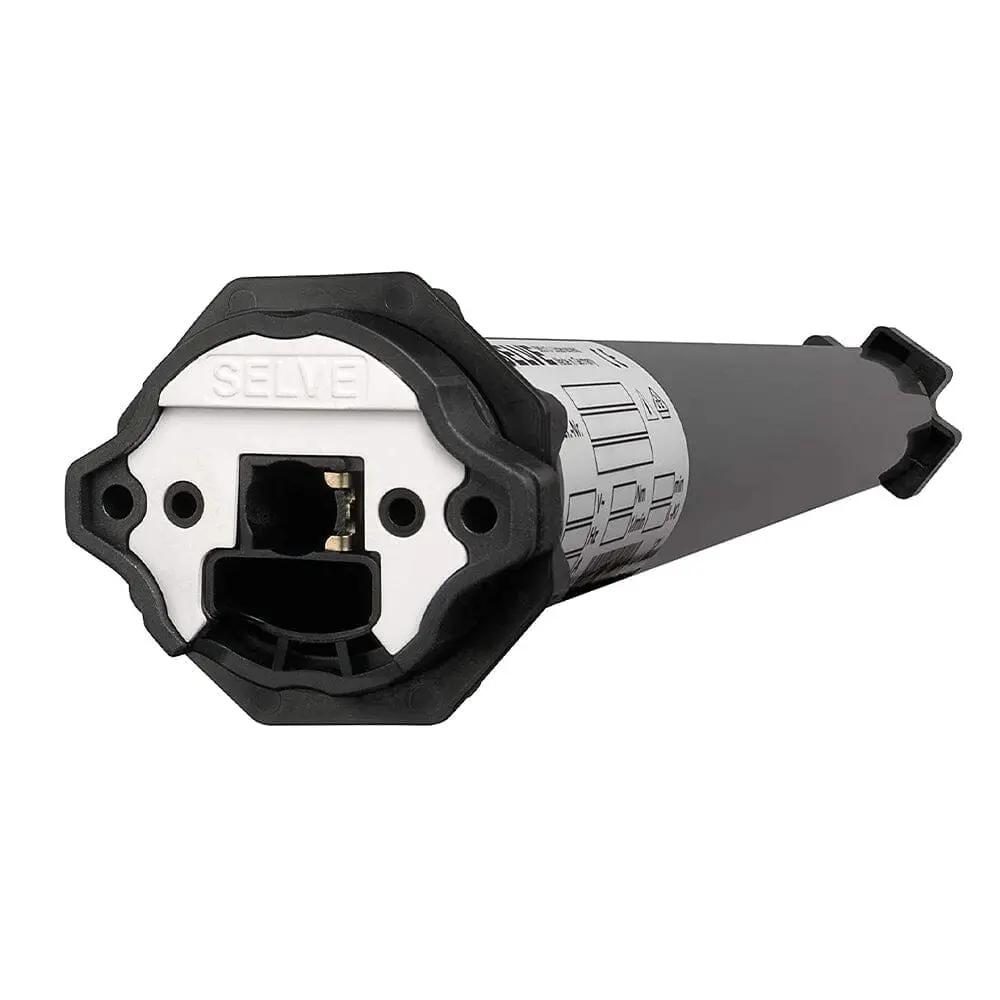

Selve roller shutter motor SE Pro 2/50 50Nm

412293

• Tubular motor with mechanical limit switch
• no radio motor
• Application recommendation: Roller shutters
• Suitable for: SW60
• Sensitive obstacle detection in downward direction
• "Reversing function": Clearing the obstacle
• Learning overload protection in upward direction
• Can be operated with suspension springs or rigid shaft connectors
• Freeze protection
• Relief of the upper end position
• Outer diameter: 45mm
• Rated torque: 50 Nm

• Rated speed: 12 rpm.

• Operating time: 4 min.
• Nominal voltage: 230 V

• Power consumption: 345W

• Frequency: 50Hz
• Current consumption: 1.50 A

• Protection rating: IP44
• Total length: 564 mm
• Made in Germany

Scope of delivery: 1 motor with connection cable
