Selve roller shutter motor SE Pro 1/6 6Nm

410220

• Tubular motor with mechanical limit switch
• no radio motor
• Application recommendation: Roller shutters
• Suitable for: SW40
• Sensitive obstacle detection in downward direction
• "Reversing function": Clearing the obstacle
• Learning overload protection in upward direction
• Can be operated with suspension springs or rigid shaft connectors

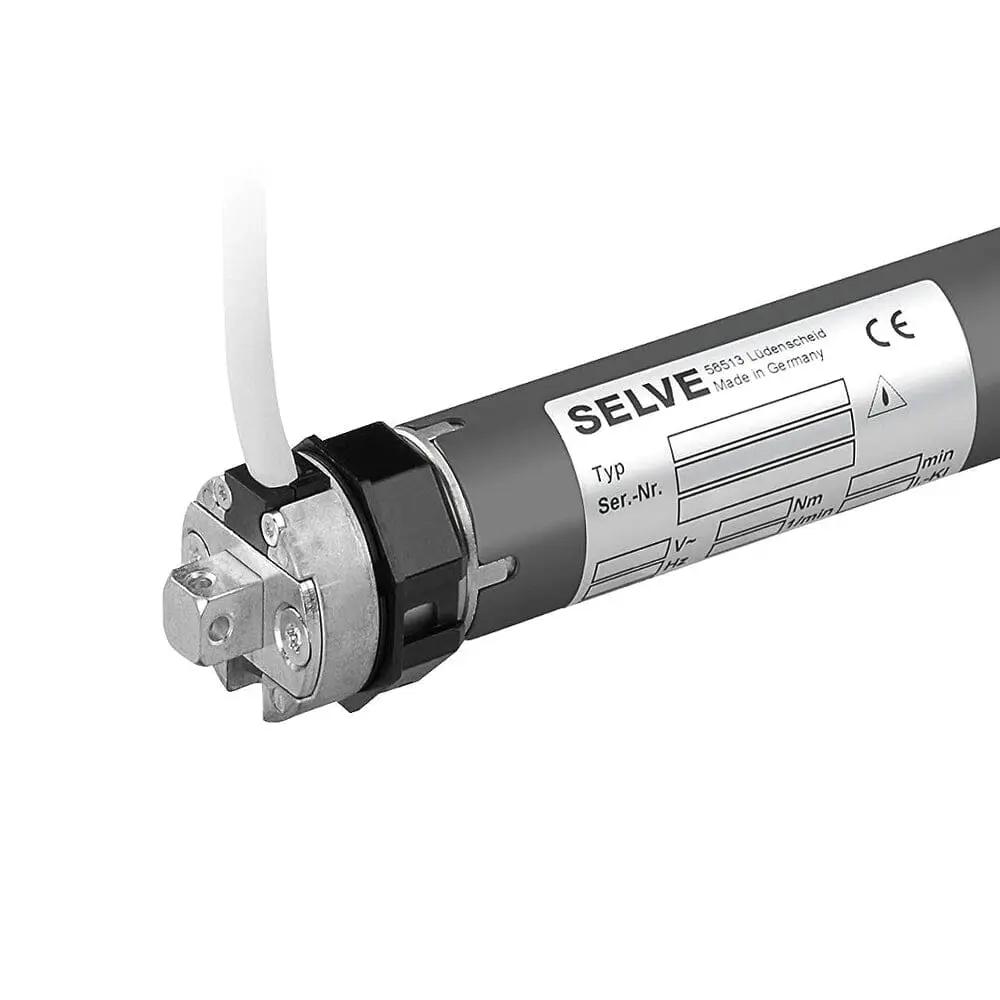

• Image similar (without adapter, drive, bearing)
• Freeze protection
• Relief of the upper end position
• Outer diameter: 35mm
• Rated torque: 6 Nm

• Rated speed: 15 rpm.

• Operating time: 4 min.
• Nominal voltage: 230 V

• Power consumption: 105W

• Frequency: 50Hz
• Current consumption: 0.50 A

• Protection rating: IP44
• Total length: 508 mm
• Made in Germany

Scope of delivery: 1 motor with connection cable
