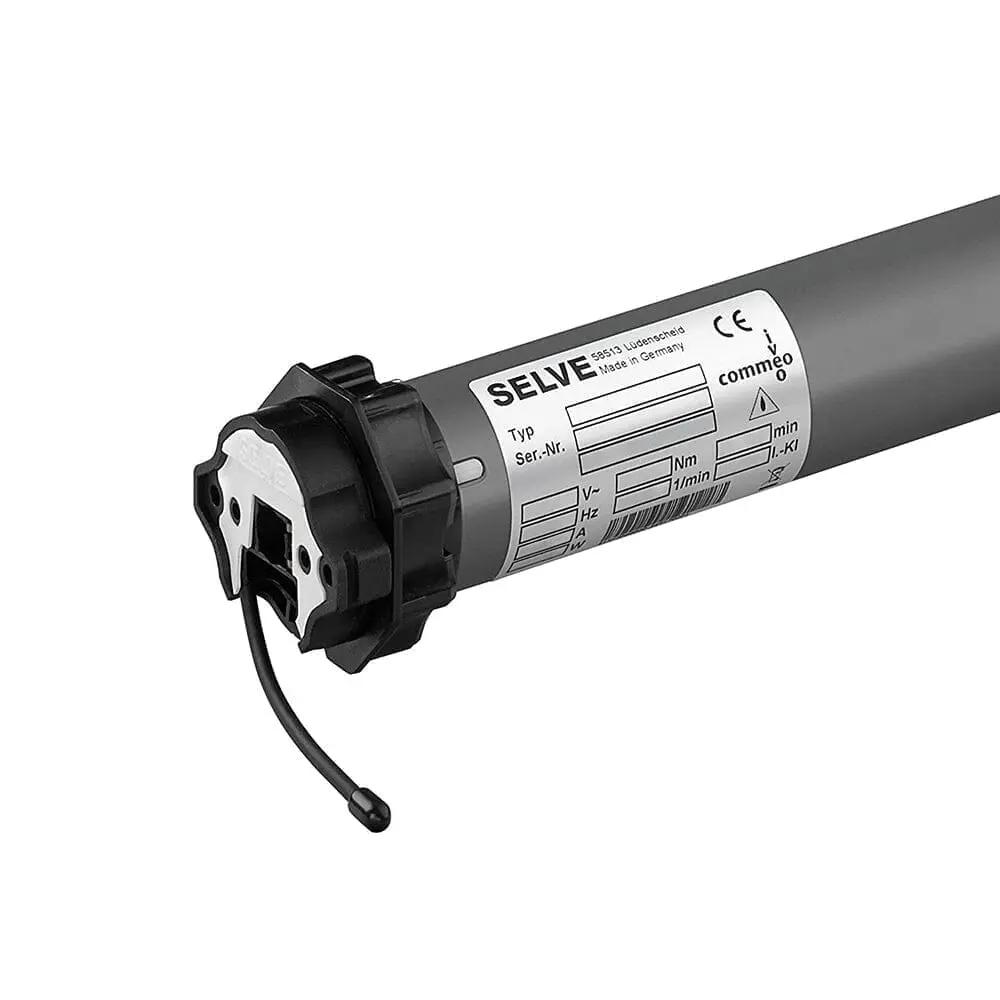

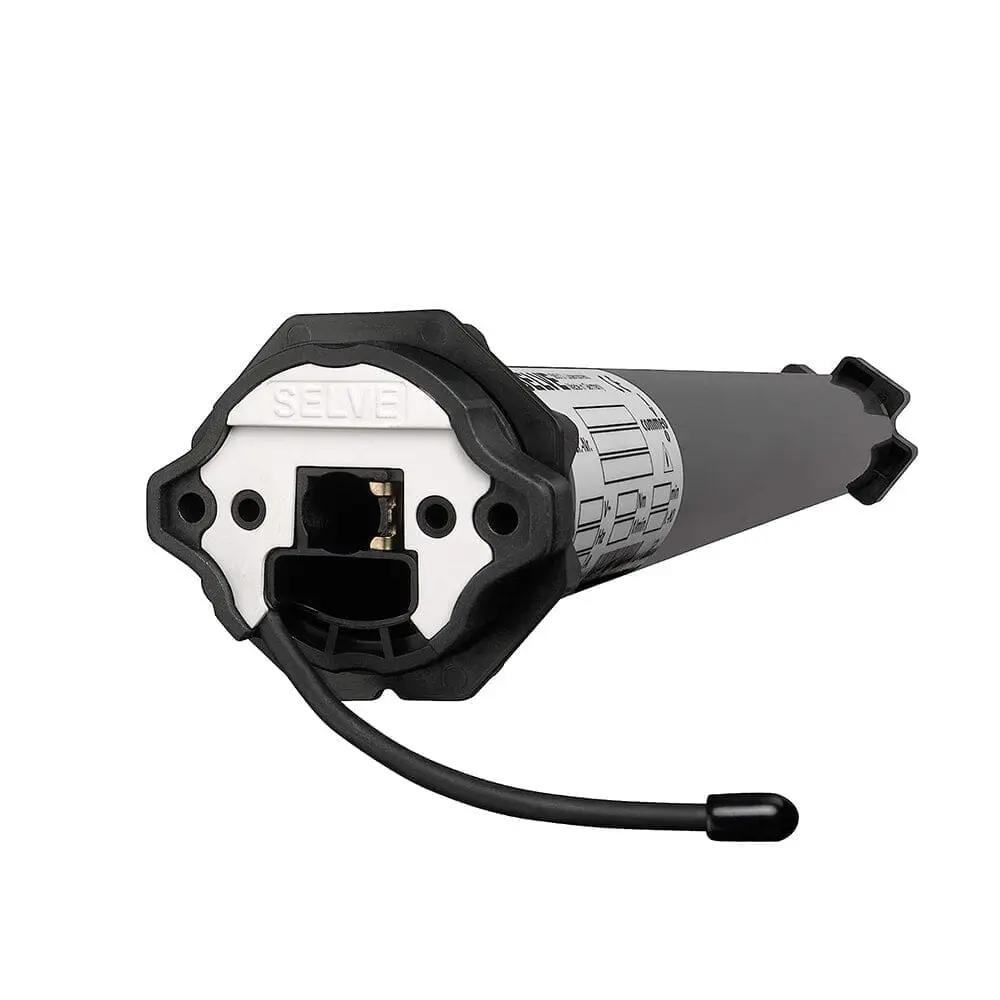

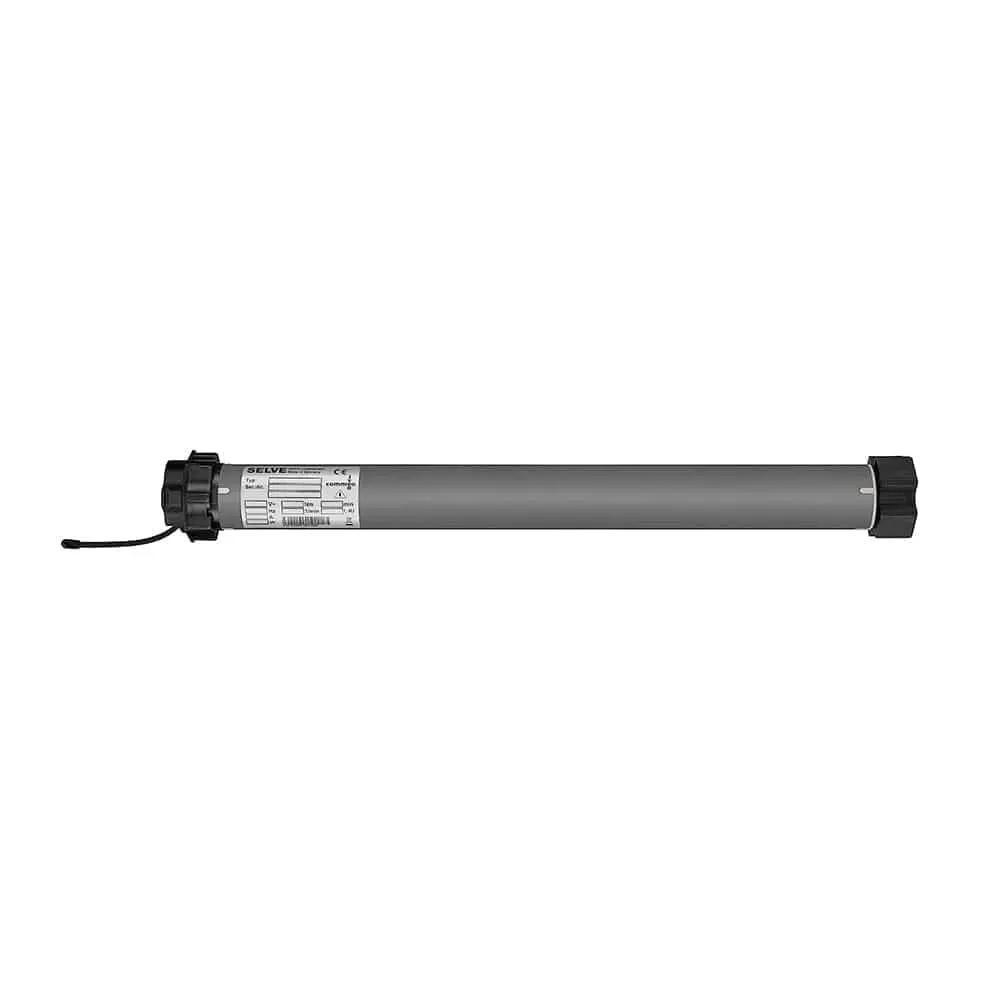

Selve radio roller shutter motor SEE 2/30-RC 30Nm

383370

• Radio-controlled tubular motor
• with obstacle detection
• Application recommendation: Roller shutters

• Suitable for: SW60
• Radio motor compatible with Selve Commeo and Selve IVEO
• Sensitive obstacle detection in downward direction
• Soft attack
• Can only be used with rigid shaft connectors
• "Reversing function": Clearing the obstacle
• Learning overload protection in upward direction

• Freeze protection
• Image similar (delivery without adapter, drive, bearing)
• Relief of the upper end position

• Outer diameter: 45mm
• Rated torque: 30 Nm

• Rated speed: 17 rpm.

• Operating time: 4 min.
• Nominal voltage: 230 V

• Power consumption: 220W

• Frequency: 50Hz

• Current consumption: 0.95 A

• Protection rating: IP44
• Total length: 557 mm
• Made in Germany


Scope of delivery: 1 motor with connection cable
