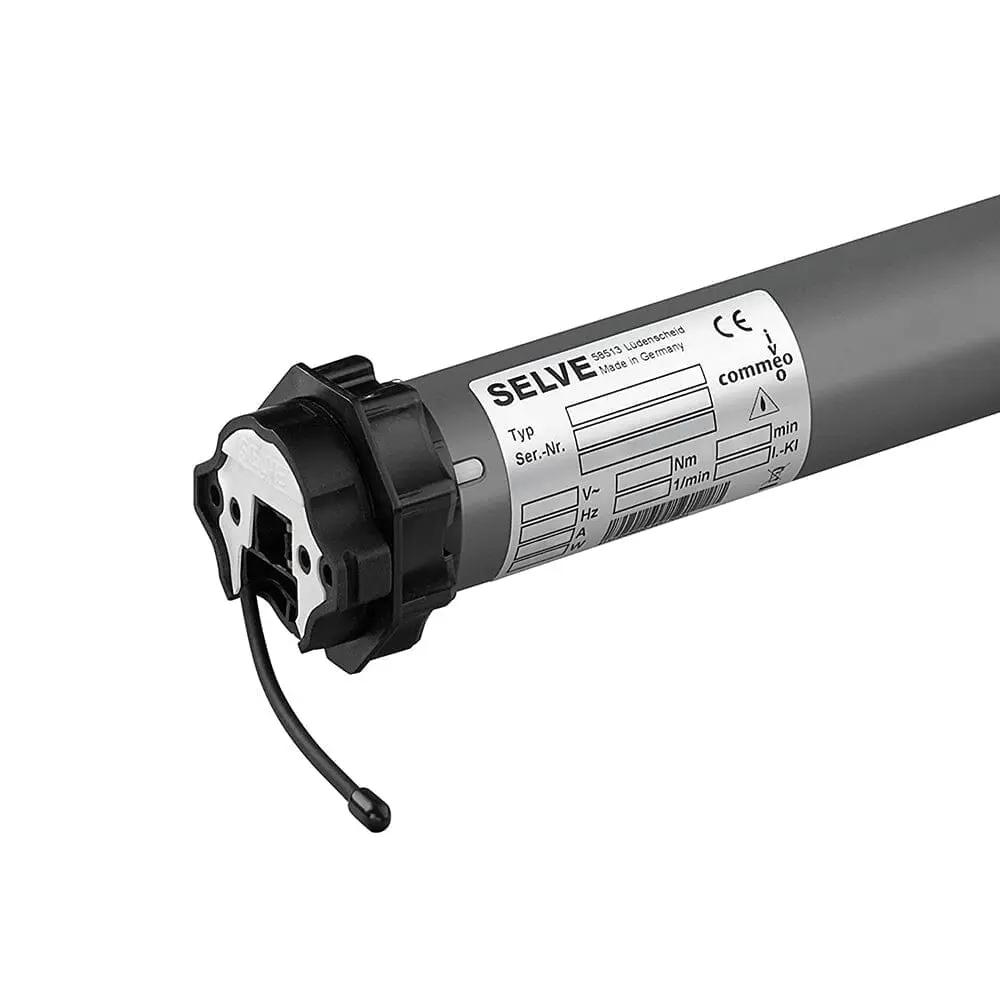

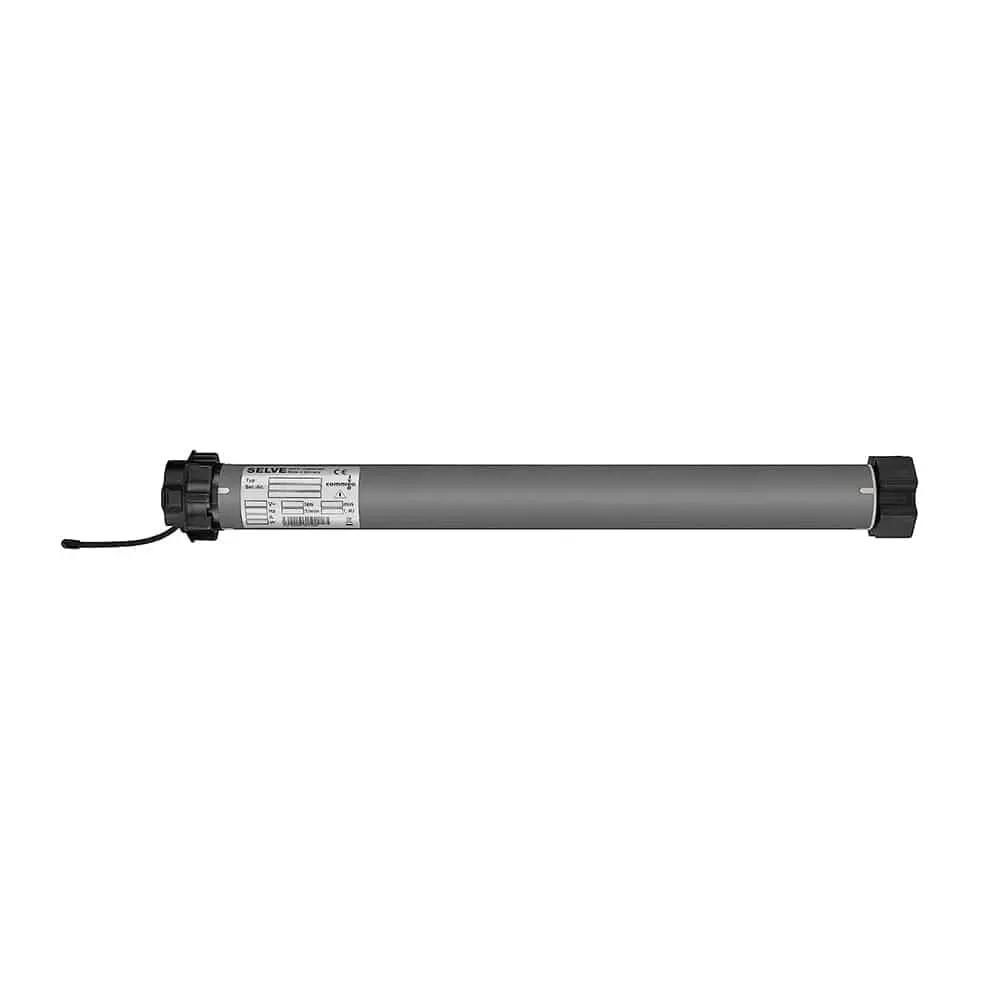

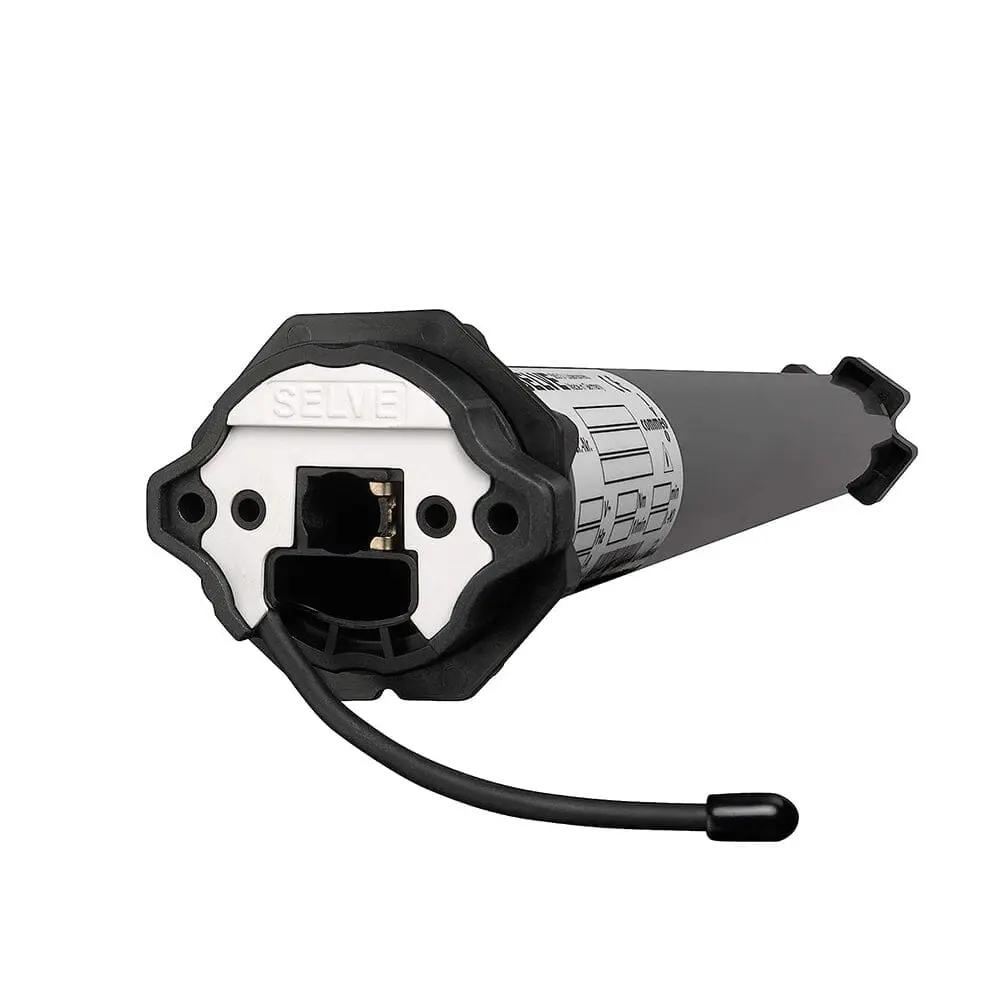

Selve radio tubular motor SE Pro 2/30-com 30Nm

4131801

DISCONTINUED ITEM. NO LONGER IN PRODUCTION!

• Radio-controlled tubular motor with mechanical limit switch
• Application recommendation: Roller shutters
• Suitable for: SW60
• Radio motor compatible with Selve Commeo
• Successor model to: Selve SEL-Plus-R
• Sensitive obstacle detection in downward direction
• "Reversing function": Clearing the obstacle
• Learning overload protection in upward direction
• Can be operated with suspension springs or rigid shaft connectors
• Freeze protection
• Gently approaching the roller shutter box
• Relief of the upper end position
• Outer diameter: 45mm
• Rated torque: 30 Nm

• Rated speed: 17 rpm.

• Operating time: 4 min.
• Nominal voltage: 230 V

• Power consumption: 220W

• Frequency: 50Hz
• Current consumption: 0.95 A

• Protection rating: IP44
• Total length: 565 mm
• Made in Germany

Scope of delivery: 1 motor with connection cable
