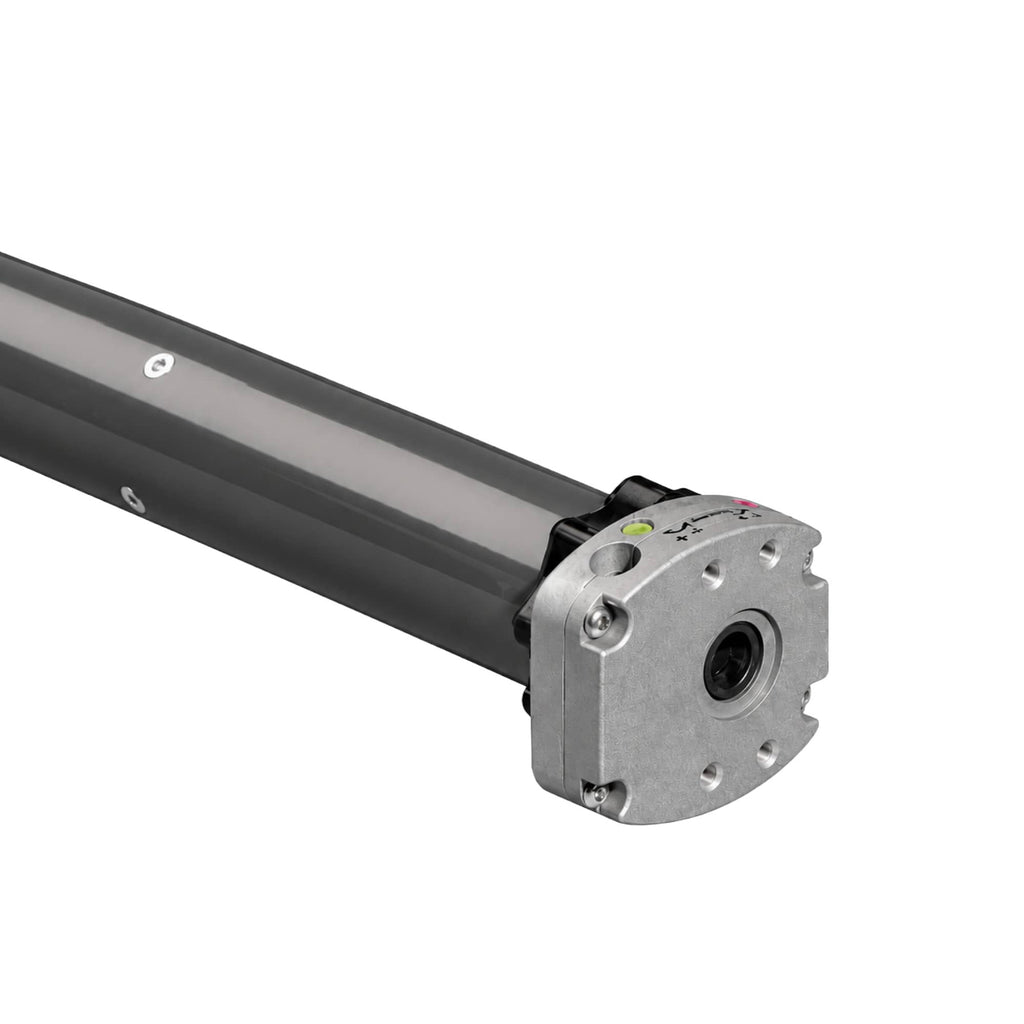

Selve tubular motor SP 2/20-NHK 20Nm

352283

• Selve's universal drive with emergency operation
• Tubular motor with emergency operation

• without radio
• Selve Series 2
• The end positions are set manually on the motor head.
• High level of user safety thanks to emergency hand crank
• End positions do not need to be readjusted after manual operation.
• Translation ratio 1:26
• Suitable for many types of curtains
• Suitable for SW60 shaft
• Rated torque: 20 Nm
• Effective roller shutter weight (kg) at a roller shutter height of 1.5m: 45
• Effective roller shutter weight (kg) at a roller shutter height of 2.5m: 37
• Image similar (delivery without adapter, drive, bearing)
• Traction force N: 610
• Engine speed (RPM): 17
• Power consumption: 172W
• Current consumption A: 0.75
• Nominal voltage: 230 V
• Frequency: 50Hz
• Operating time: 4 min.
• Protection rating: IP44
• Outer diameter: 45mm
• Connection cable length: 3m
• Total length: 567 mm
• Made in Germany

Note: SP drives must not be connected in parallel! Use an isolating relay when using two or more drives!

Scope of delivery: 1 motor with connection cable
