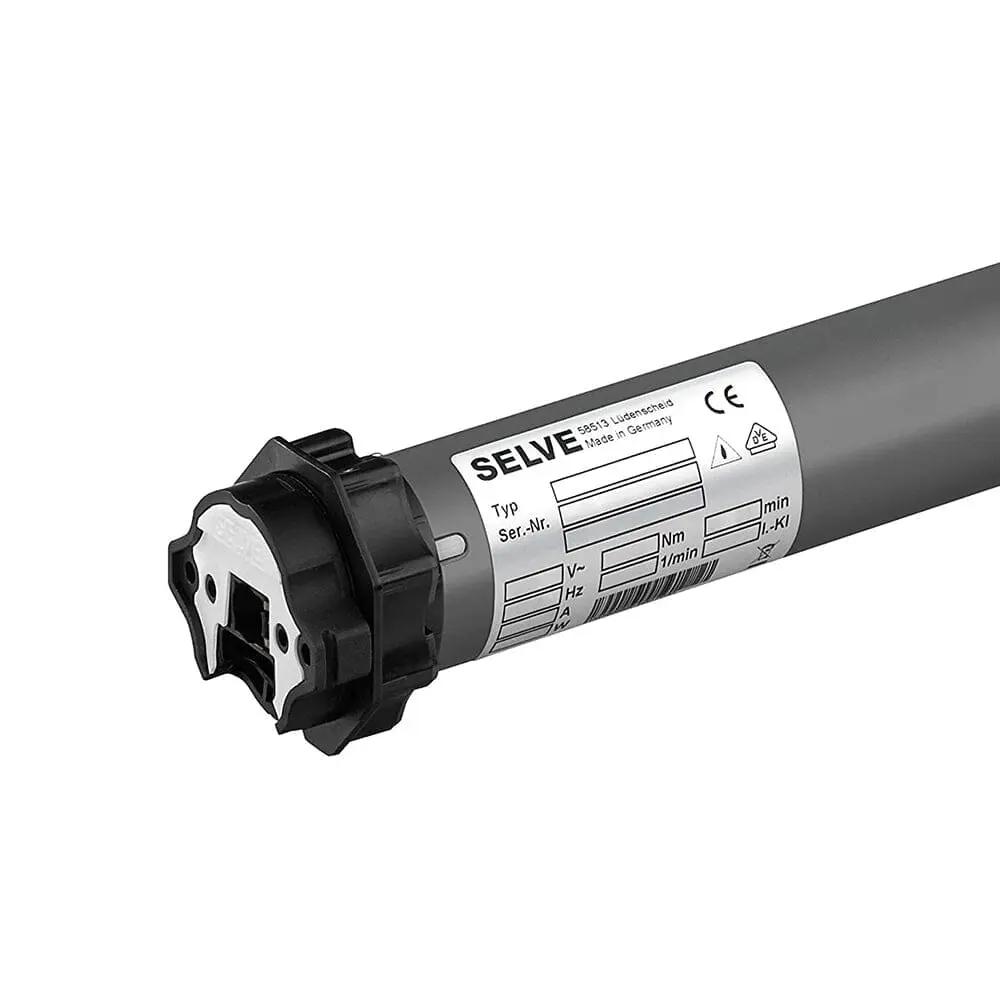

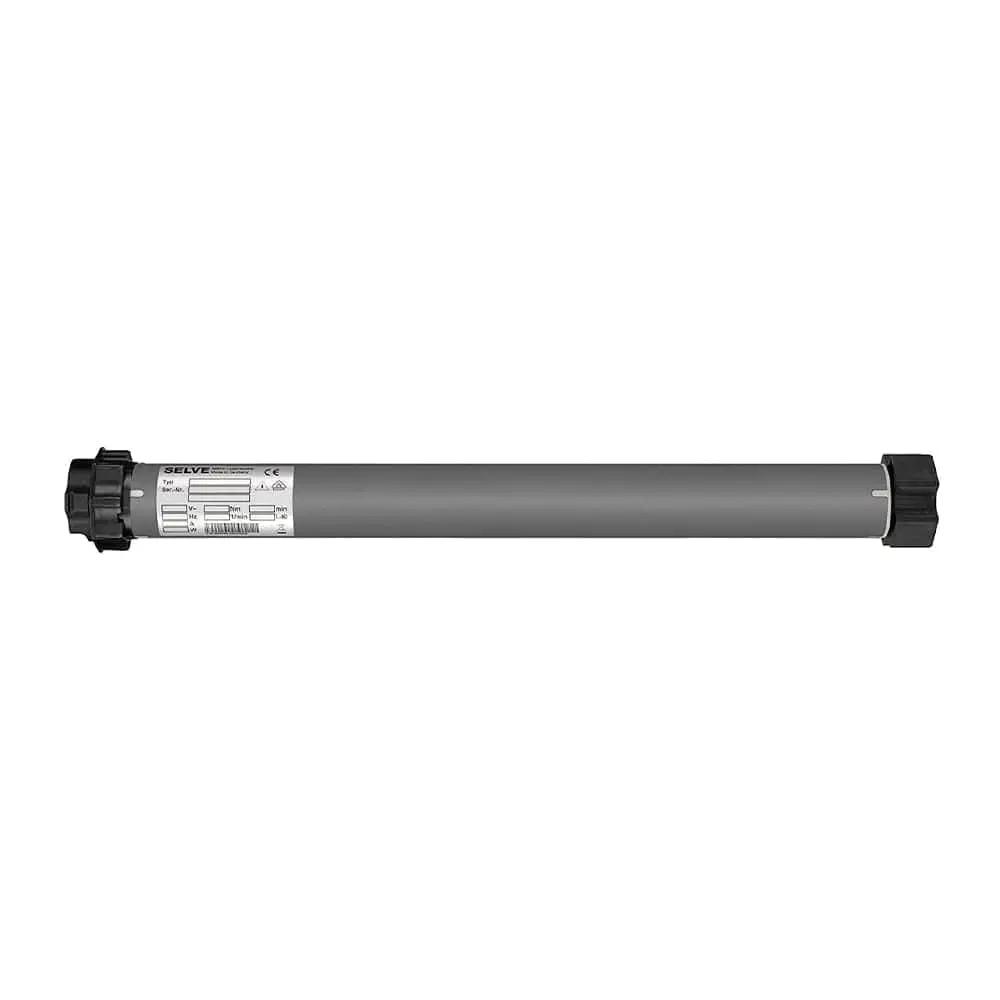

Selve roller shutter motor SP 2/40 40Nm

352400

• Tubular motor with mechanical limit switch
• without radio
• Former designation on the green-painted engine: SP

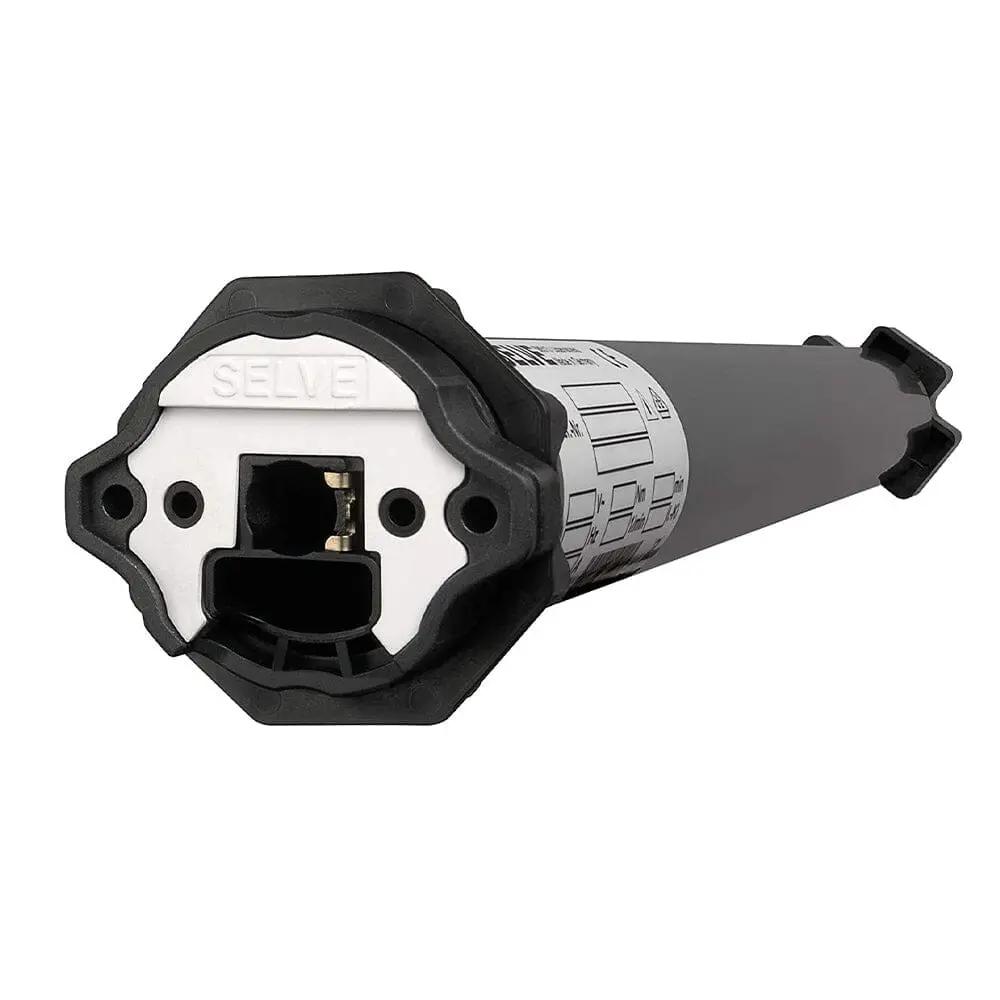

• Universal motor head compatible with Somfy star bearings
• Suitable for SW50 and SW60 shafts
• No upper stop required, thanks to position-controlled shut-off.
• Easy adjustability with ball head adjustment aid
• Image similar (delivery without adapter, drive, bearing)
• Rated torque: 40 Nm

• Rated speed: 17 rpm

• Operating time: 4 min.
• Nominal voltage: 230 V

• Power consumption: 345W

• Frequency: 50Hz
• Current consumption: 1.50 A
• Cable length: 2.5m
• Protection rating: IP44
• Total length: 559 mm

• Made in Germany

Note: SP drives must not be connected in parallel! Use an isolating relay when using two or more drives!

Scope of delivery: 1 motor with connection cable
