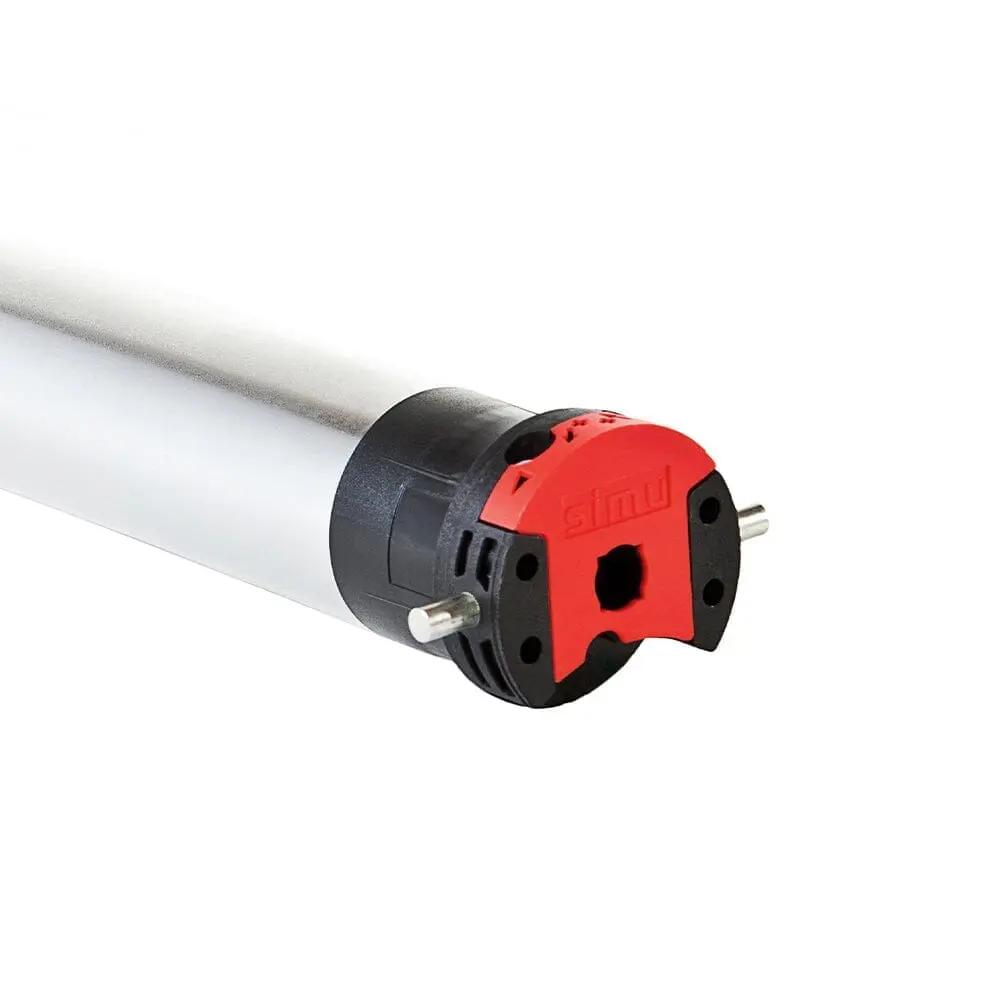

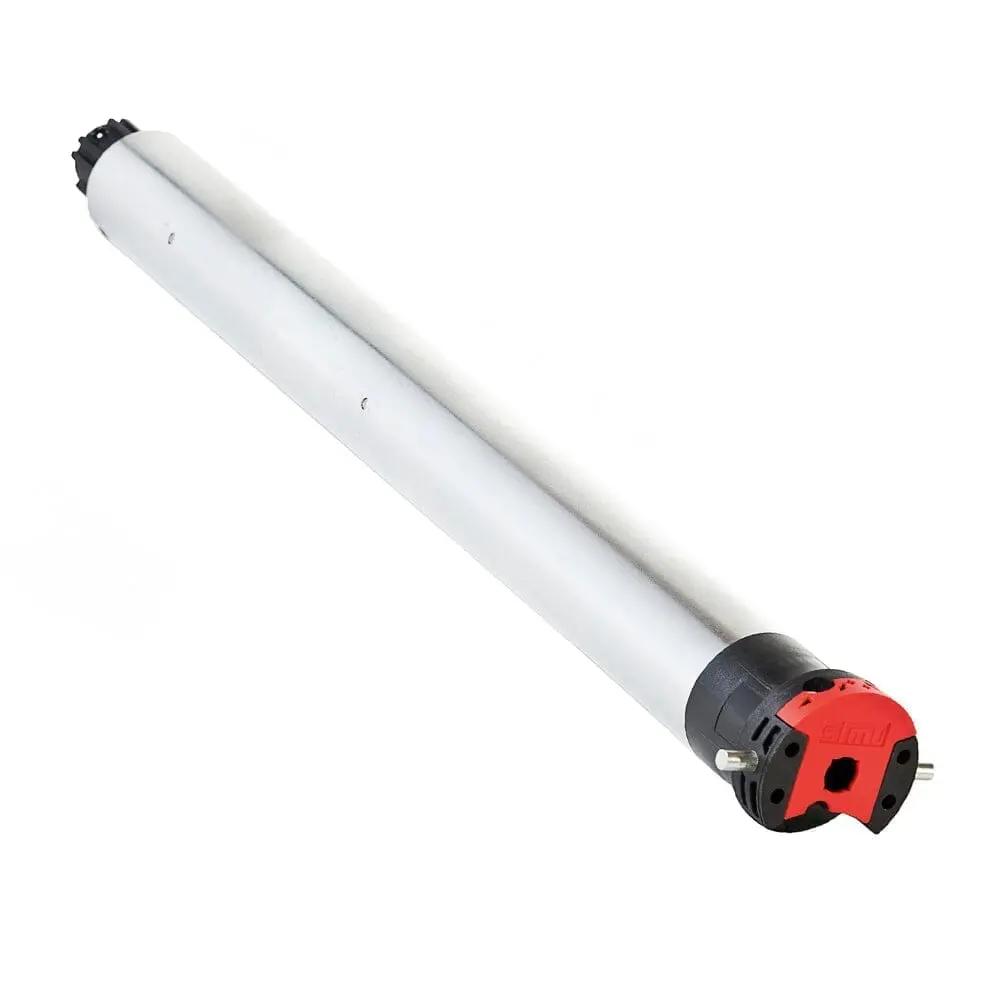

SIMU roller shutter motor T5-35/17

• Roller shutter motor
• without radio
• Simple wiring thanks to a variable motor output
• The end stop can be easily and precisely adjusted.
• For SW60
• Mechanical drive
• Tensile force: 35 Nm
• Maximum pulling force: 76 kg
• Speed ​​(RPM): 17 RPM
• Power consumption: 240 W
• Current consumption: 1.10 A
• Supply voltage: 230 V AC – 50 Hz

• Cable length: 2.5 m
• Protection rating: IP44
• Length: 610mm
• Supply voltage: 230 V AC – 50 Hz

• Material: Steel and plastic

• Color: Silver / Red


Scope of delivery: 1 motor with connection cable
