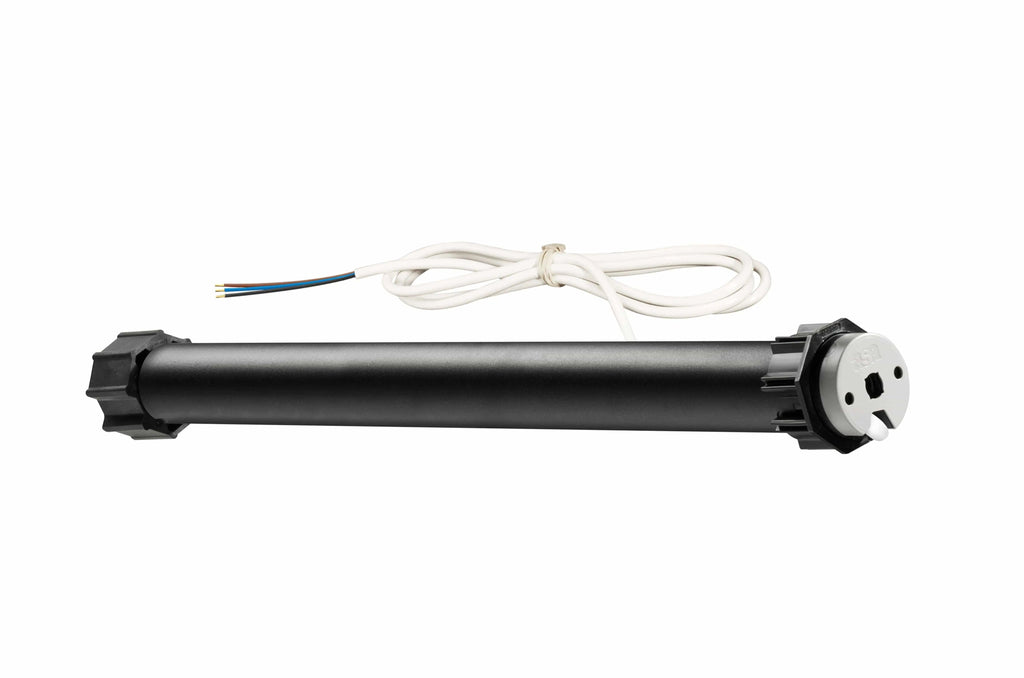

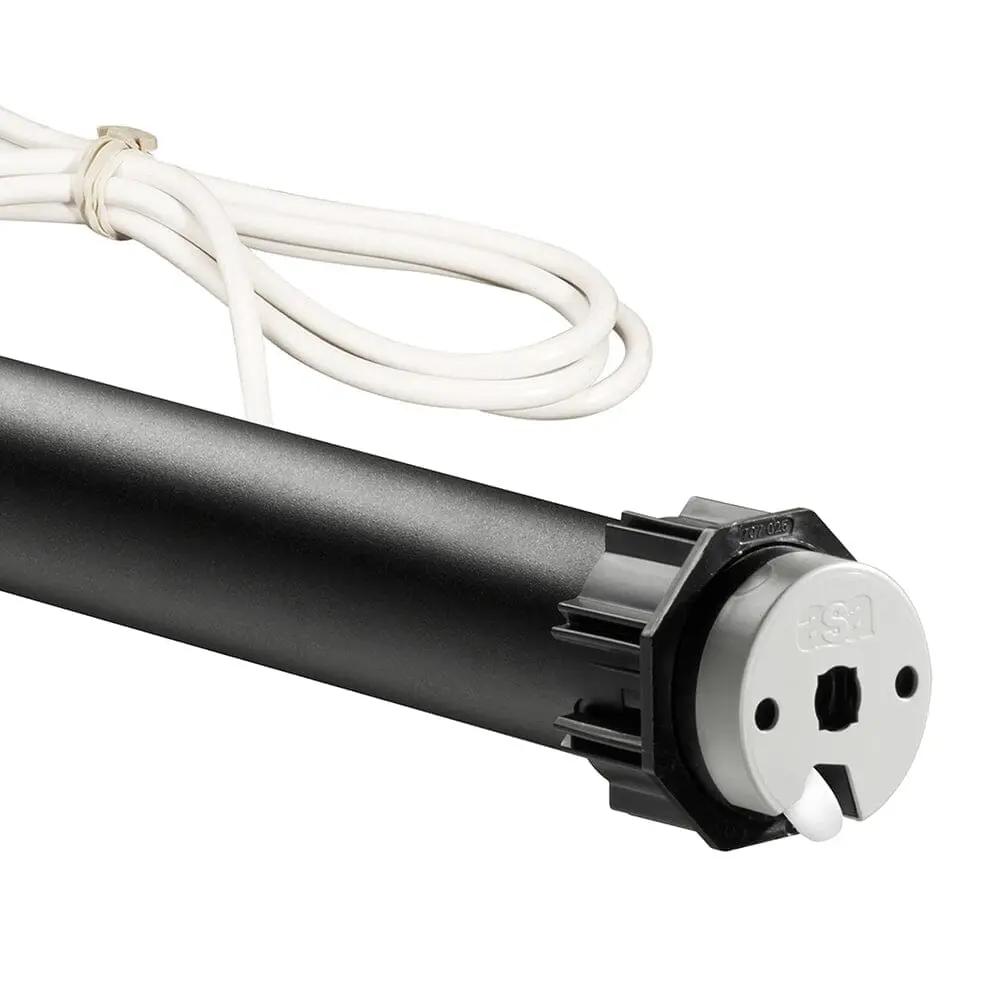

ASA roller shutter motor Davinci 40 ST 13/10

2254247

ASA's powerful, robust drive system, proven millions of times over, is ideal for roller shutters, sunshades, screens, and projection screens. Its high torque of up to 50 Nm allows for optimal motorization even with heavy coverings.

• The end stop can be easily and precisely adjusted.
• No radio motor, no obstacle detection
• Product quality according to international certifications (CE, VDE, NF)
• Durability - our motors are tested to 30,000 cycles.
• Smooth running - High-precision manufacturing - Low-noise gearbox
• Rated torque 13Nm
• Rated speed 10 rpm.
• Power 110W
• Nominal voltage 230 V
• Frequency 50Hz
• Cable length 2.5m
• Protection class IP44
• Total length 485mm
• Pulling force roller shutter height 1.5m - 31kg
• Pulling force for roller shutters at a height of 2.5m - 28kg

• Includes pre-assembled adapter set for 40 mm octagonal shaft

Scope of delivery: 1 motor with connection cable
