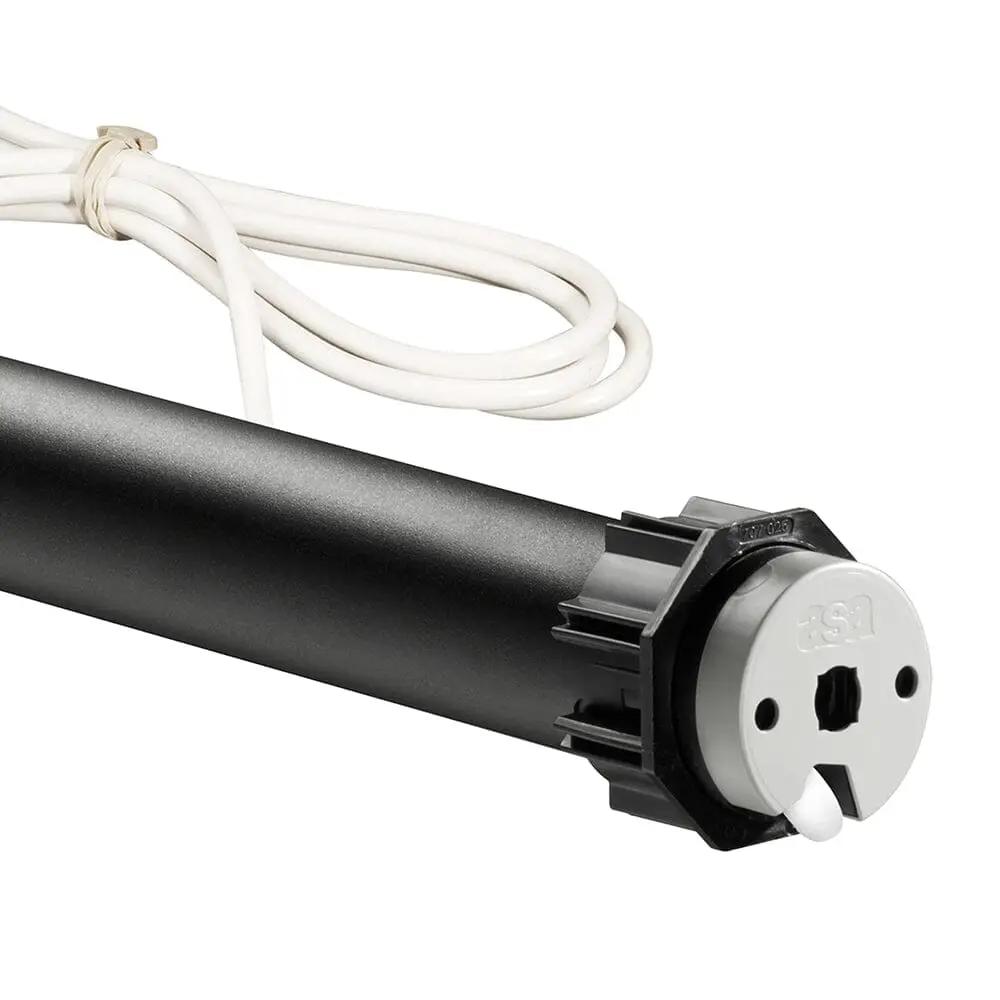

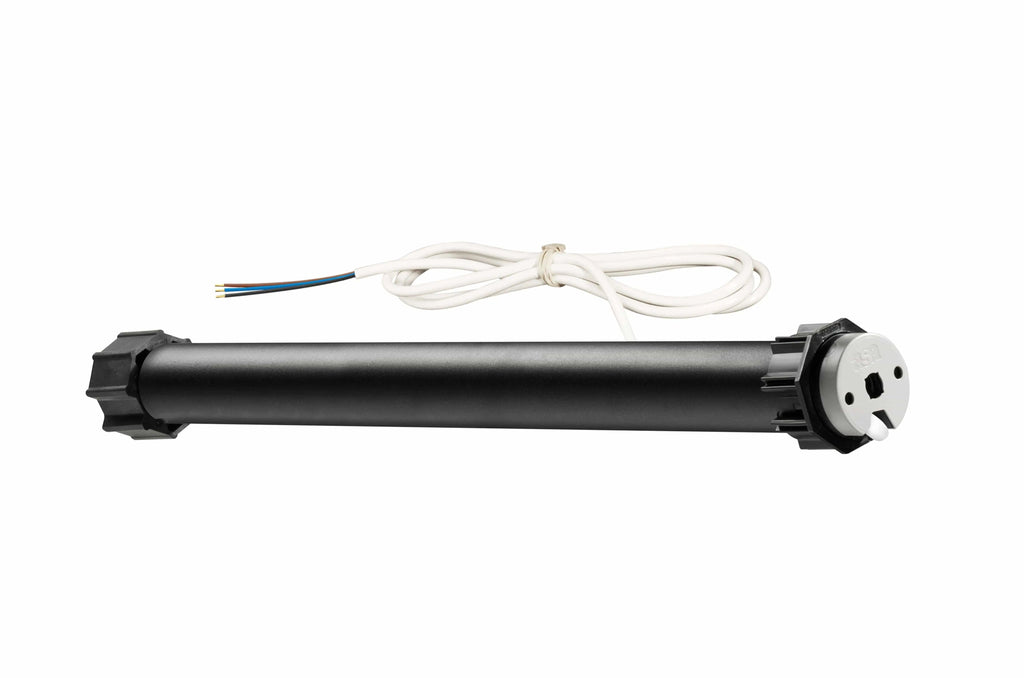

ASA roller shutter motor Davinci 50 ST 10/17

2241603

ASA's powerful, robust drive system, proven millions of times over, is ideal for roller shutters, sunshades, screens, and projection screens. Its high torque of up to 50 Nm allows for optimal motorization even with heavy coverings.

• The end stop can be easily and precisely adjusted.
• No radio motor, no obstacle detection
• Product quality according to international certifications (CE, VDE, NF)
• Durability - our motors are tested to 30,000 cycles.
• Smooth running - High-precision manufacturing - Low-noise gearbox
• Rated torque 10Nm
• Rated speed 17 rpm.
• Power 120W
• Nominal voltage 230 V
• Frequency 50Hz
• Cable length 2.5m
• Protection class IP44
• Veins: 4
• Total length 523mm
• Pulling force roller shutter height 1.5m - 20kg
• Pulling force for roller shutters at a height of 2.5m - 18kg


Scope of delivery: 1 motor with connection cable
