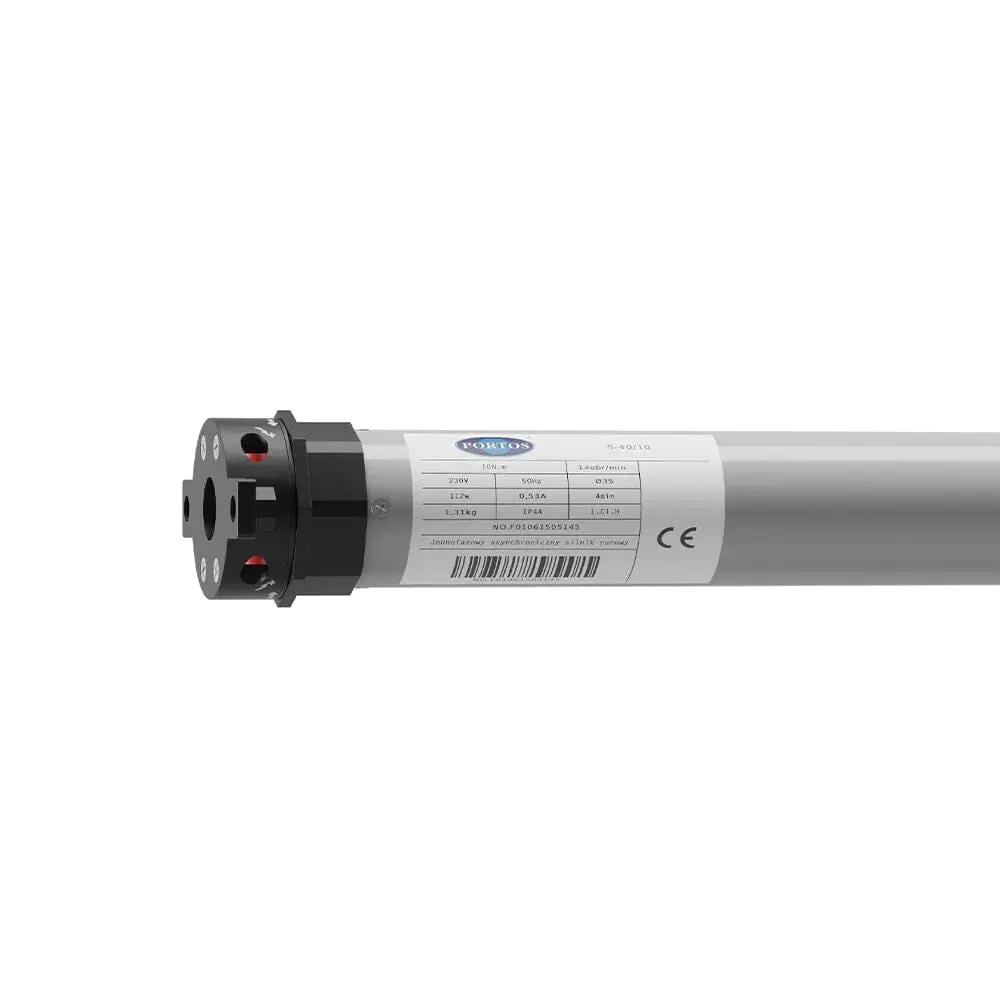

Portos roller shutter motor S-40/10

• Tubular motor with mechanical limit switch
• Successor to Porto's SW40/10 ( older models were produced in blue)
• without radio
• Operation via switch
• Endpoints are manually adjusted via an adjustment screw.
• Fixed connection cable (non-pluggable)
• Rated torque: 10 Nm

• Rated speed: 17 rpm

• Pipe diameter: 35 mm

• Suitable for: SW40
• Nominal voltage: 230 V

• Power consumption: 121 W

• Frequency: 50 Hz
• Current: 0.53 A
• Operation time: 4 min.
• Net weight: 1.58 kg
• Cable length: 2m
• Cable conductors: 4-core
• Protection rating: IP44
• Maximum speed: 39 rpm

• Total length: 520 mm

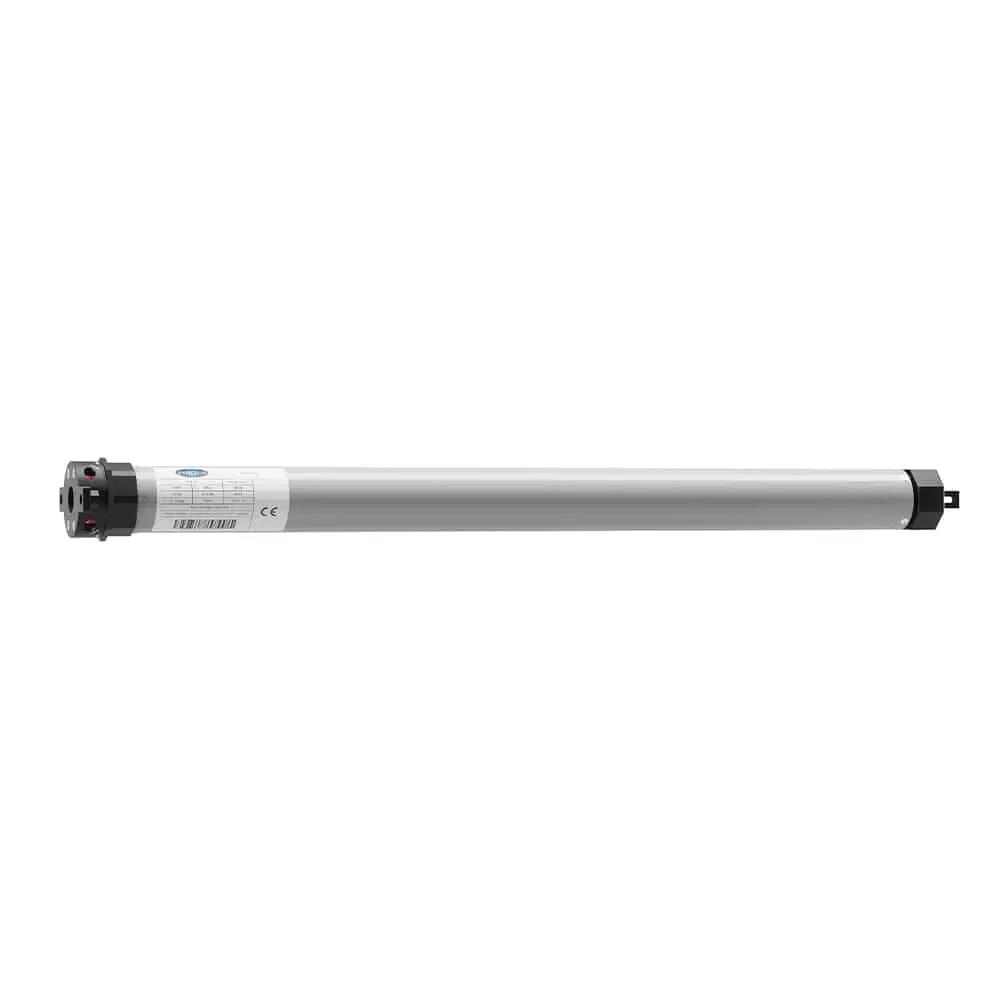

• Image similar (delivery without adapter, drive, bearing)

• Material: Steel and plastic
• Color: Gray

Scope of delivery: 1 piece with connecting cable
