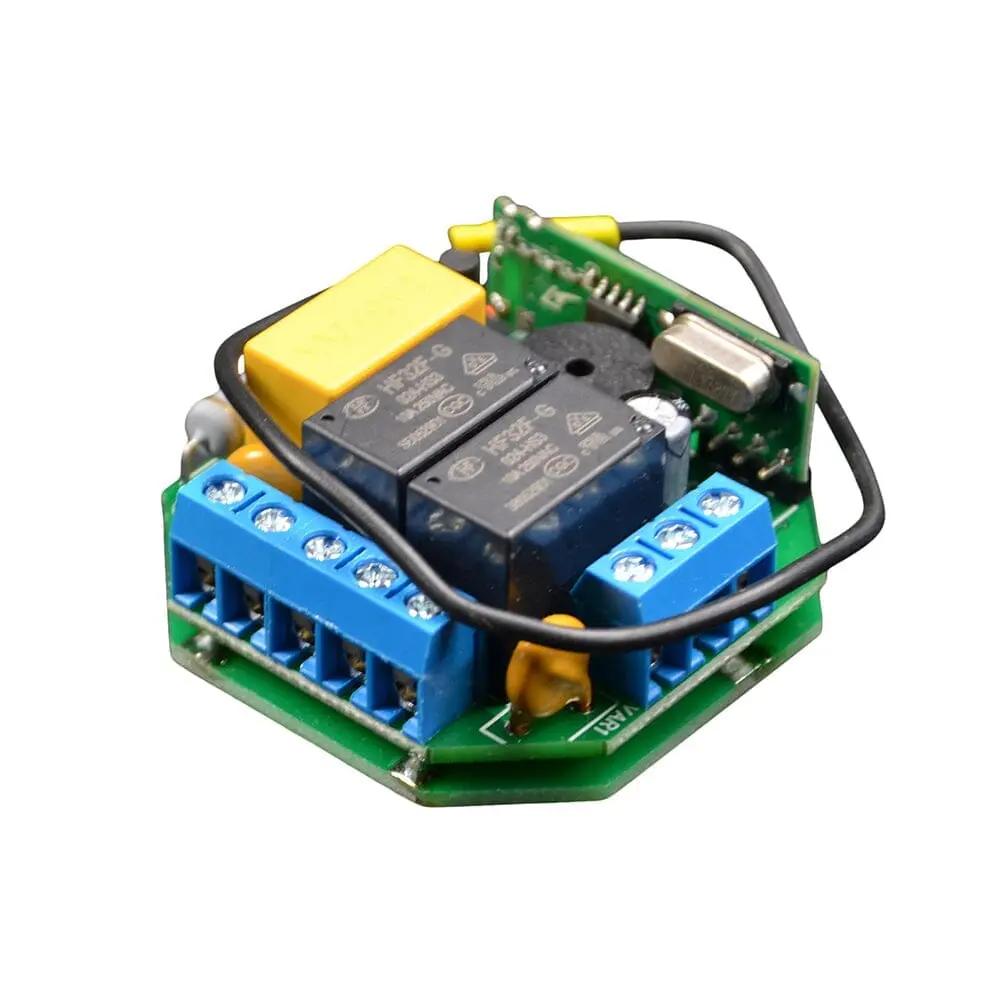

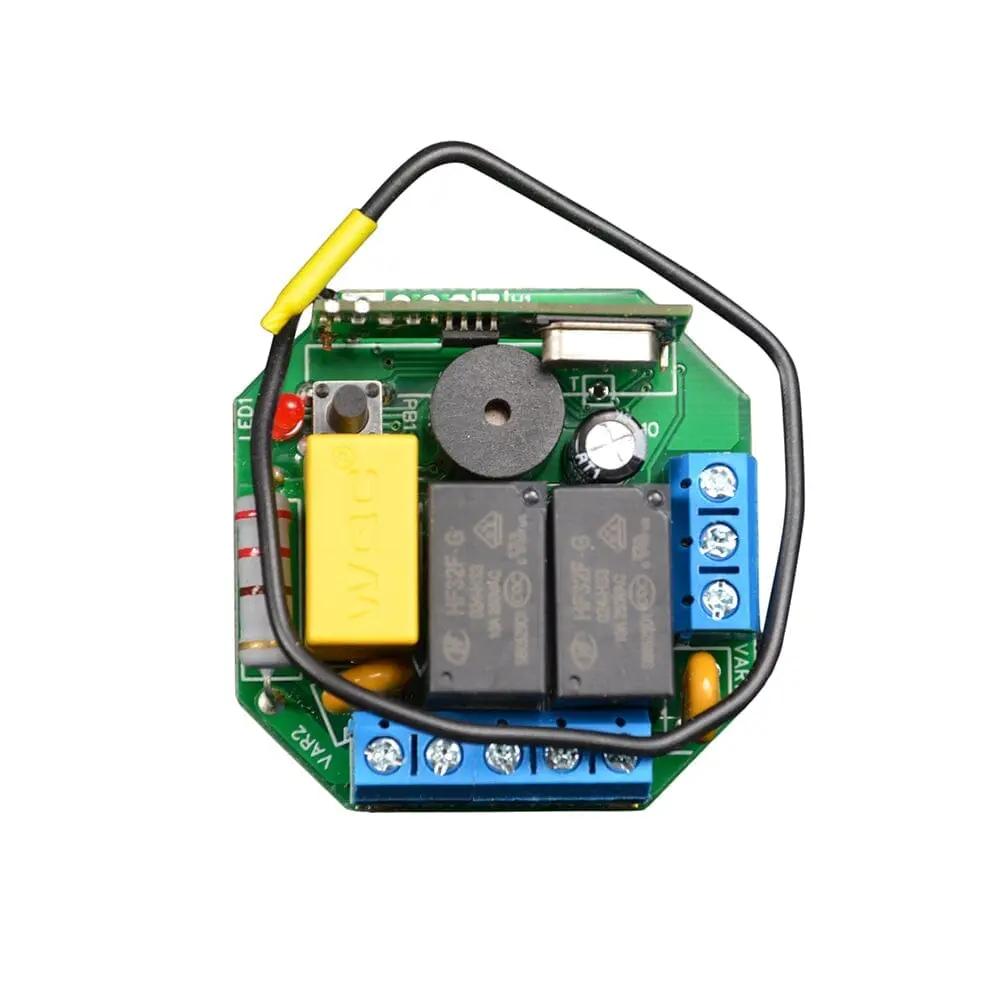

Portos XT-R radio receiver for wired motors

This control unit allows you to convert your mechanical motor into a radio-controlled motor, enabling you to control the roller shutter motor with a Portos handheld or wall-mounted transmitter. You can use it to control Portos handheld transmitters from the RR or DC series. Additionally, you can operate the motor via an app using the Everhome Smart Home Box.

• Flush-mounted radio receiver
• Used to retrofit an electric Portos roller shutter motor with radio control.
• To control a drive (motor)

• Fits in a standard flush-mounted box

• Retains up to 10 transmitters (wall and/or handheld transmitters)

• Compatible with all transmitters of the Portos RR, DC, PX series

• Can also be used for motors from other manufacturers.
• Power supply: 230 V~ , 50 Hz
• Current draw: 5A
• Control voltage: 230 V
• Number of supported actuators: 1
• Operating temperature range: -25 °C to +85 °C
• Dimensions: 44 mm x 44 mm x 25 mm
• Current consumption (STANDBY): 27mA

• Compatible with Everhome

Scope of delivery: 1 piece
