Winkhaus Fenster Winkhaus Verschlusssensor VS.B.06 kabelgebunden 4983721

Winkhaus VS.B.06 wired locking sensor 5120288

Hersteller: Winkhaus

FG Artikel Nummer: 210030

49,95€

Taxes included. Shipping calculated at checkout.

In stock

Express shipping available

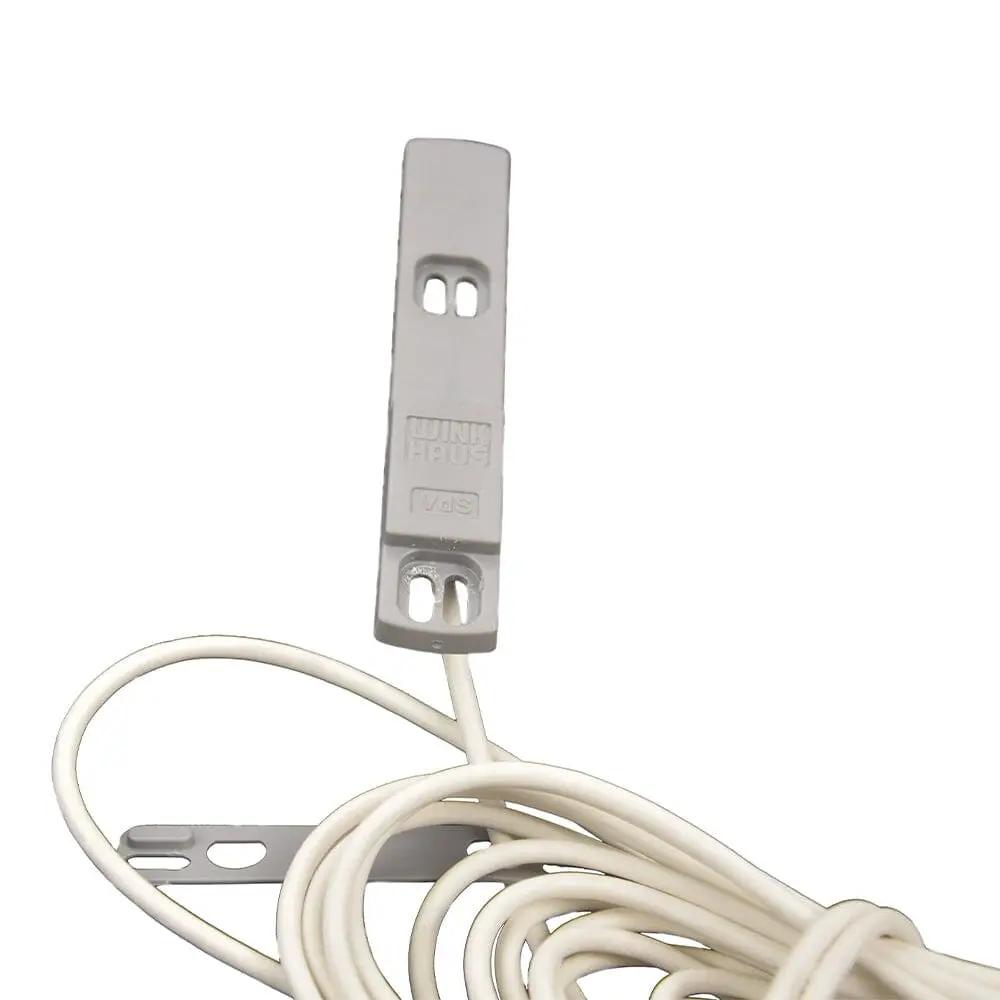

Winkhaus Sensor VS.B.06 wired LOCK SENSOR VS.B.06

4983721 / 5120288

Contact strike plate VS.B.06 and VS.B.25 for combined opening and closing monitoring - VdS-approved contact strike plate with closing contact for alarm and monitoring systems VdS No. G 106511, environmental class III - Use in combination with one of the magnetic contact transmitters E1.VS.KG, MK.VS.150.KG or MK.VS.250.KG

Switching voltage: max. 48 V DC
Switching current: max. 0.5 A
Transport current: max. 1.0 A
Contact resistance: max. 150 m
Switching capacity: max. 10 W purely resistive load
Temperature range: -20°C to +70°C
Protection class: IP67 according to DIN EN 60529
Lifespan: min. 10,000,000 switching cycles
Dimensions (L x W x H): 104 mm x 18 mm x 8.5 mm
VdS Class B
Connection type: 6 m molded connection cable, white
4 wires x 0.14 mm² diameter 3.5 mm
